EdgeStar AP13500G User Manual

8

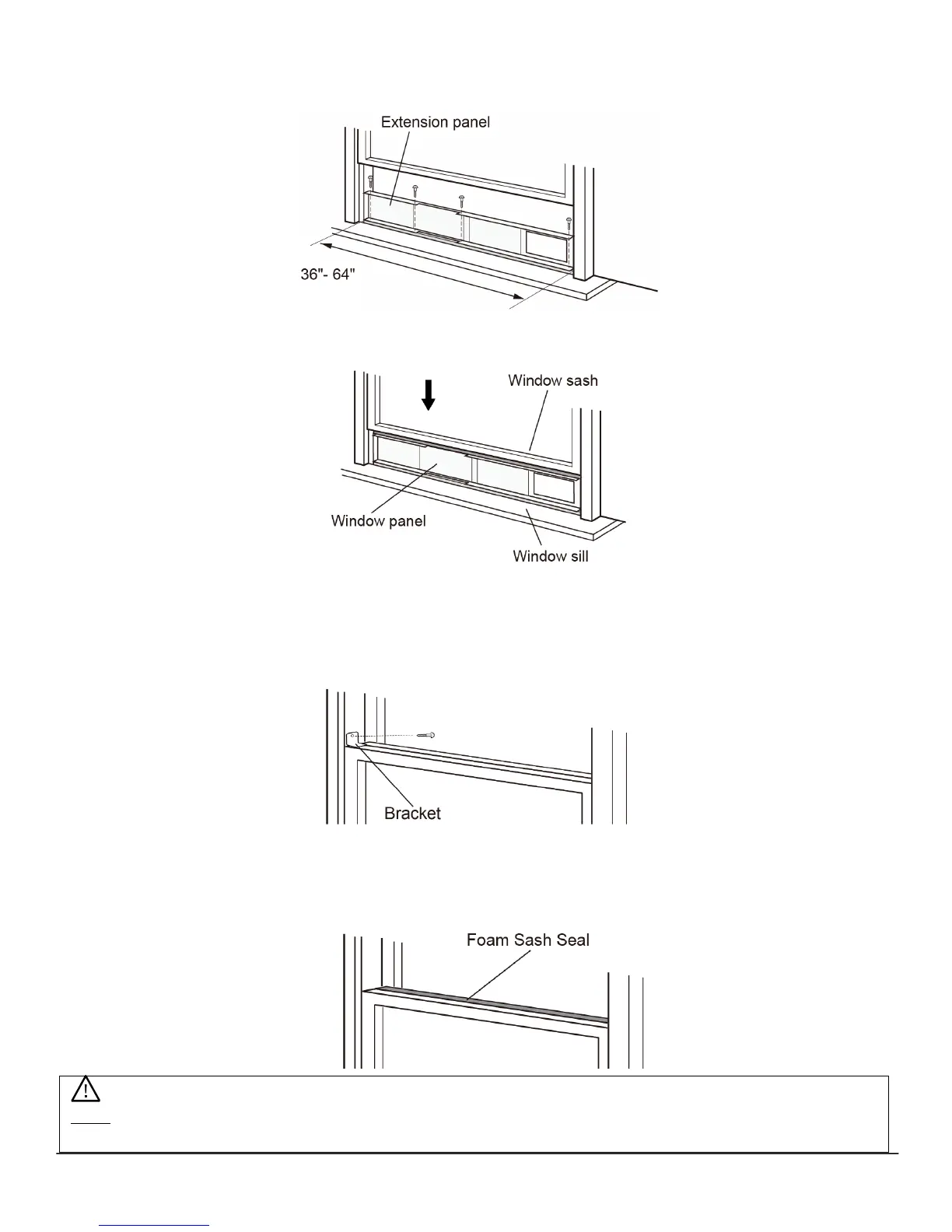

• If the inner width of the window is between 36” and 64” wide, attach the window panel to
the window sill with four (4) wood screws.
5. Close Window Sash
Close the window sash firmly against the window panel.
6. Attach Window Lock Bracket
• Ensure that the window sash is closed firmly against the Window Panel.
• Place the Window Lock Bracket as shown in the below image.
• Attach the bracket with a screw.
7. Install Sash Seal
• Cut the foam seal to the appropriate length.
• Insert the foam sash seal between the top of the inner window and the outer window to
create a proper seal.
Note: The sash seal is thicker than the window panel seal and does not include an adhesive
backing.

EdgeStar AP13500G Specifications

General

Brand	EdgeStar
Model	AP13500G
Category	Air Conditioner
Language	English
