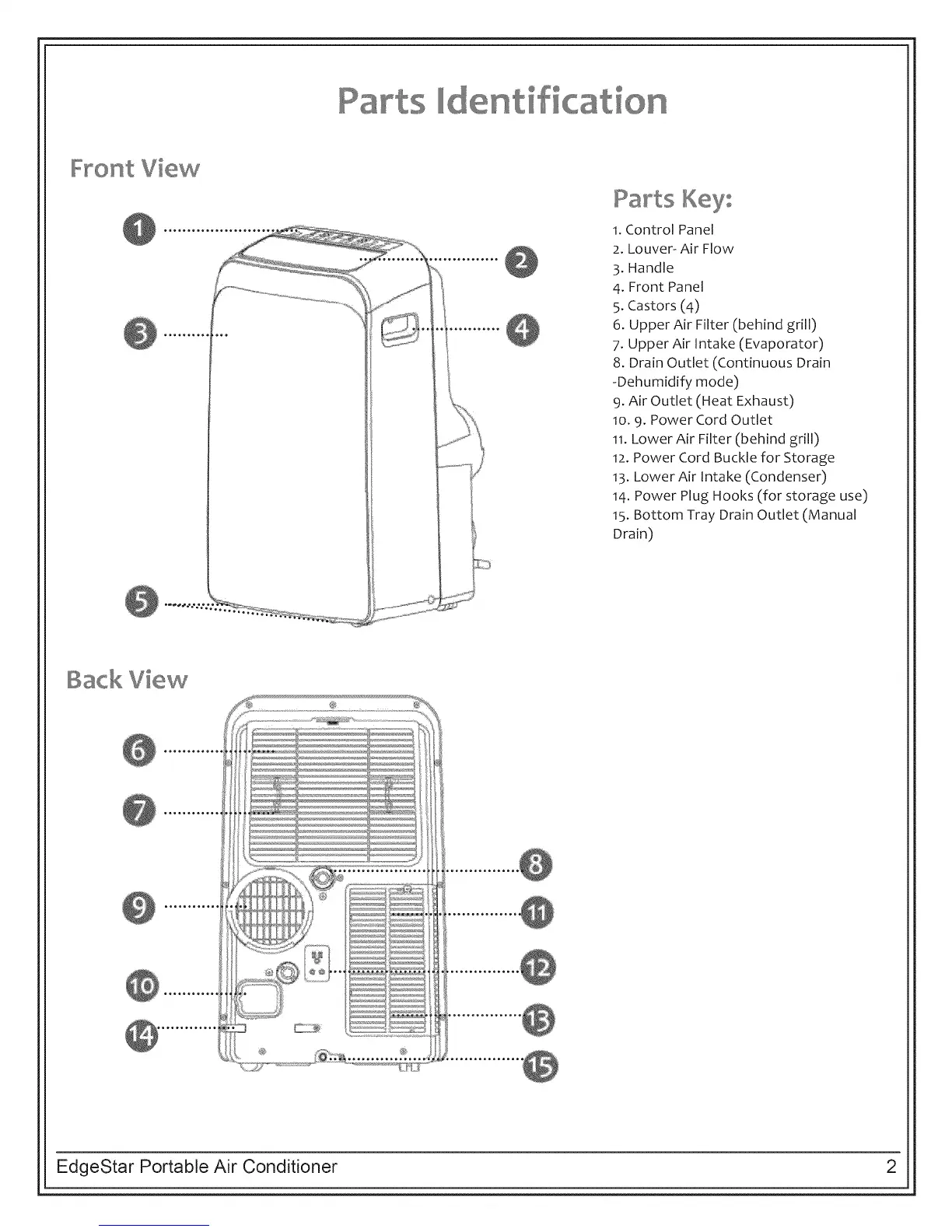

Parts Id
@
I0_
Front View
Parts Key;
1. Control Panel
2. Louver- Air Flow
3. Handle
4. Front Panel
5. Castors (4)
6. Upper Air Filter (behind grill)
7. Upper Air Intake (Evaporator)
8. Drain Outlet (Continuous Drain
-Dehumidify mode)
9. Air Outlet (Heat Exhaust)
lo. 9. Power Cord Outlet
11. Lower Air Filter (behind grill)
12. Power Cord Buckle for Storage
13. Lower Air Intake (Condenser)
14. Power Plug Hooks (for storage use)
15. Bottom Tray Drain Outlet (Manual
Drain)
Back View
EdgeStar Portable Air Conditioner 2
