EdgeStar Built-in Ice Maker 4
Installation Clearance Requirements
• The unit should be located on a firm and level surface. It is important for
the ice maker to be level in order to work properly. If needed, you can
adjust the height of the ice maker by rotating the feet. See the “Leveling
the Ice Maker” section.
• A standard electrical supply (115 VAC only, 60 Hz, 15 A), properly
grounded in accordance with National Electrical Code and local codes
and ordinances is required.

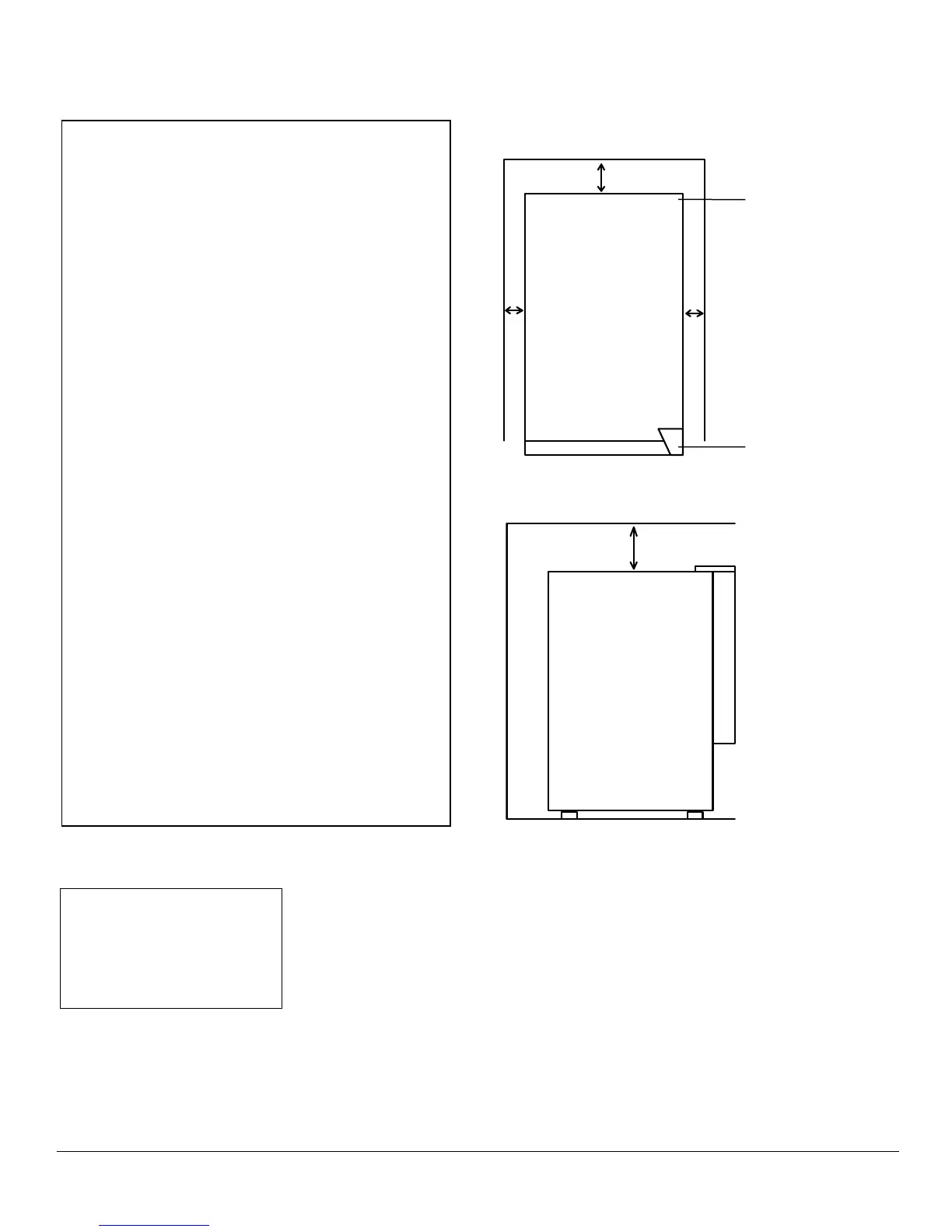

1”
2/5”
1/5”
1/5”
Door Hinge
Back of unit
Top View
Side View
* This icemaker should be installed by a licensed
plumber only.
* To ensure proper service access and ventilation,
allow more 4” clearance at rear, and 1” at top and 1”
at sides. The installation should allow the icemaker
to be pulled forward for servicing if necessary.
* When installing the ice maker under a counter,
follow the recommended spacing dimensions shown.
Place electrical and water supplies and drain fixtures
in the recommended locations as shown.
* Choose a well ventilated area with temperatures
above 50°F and below 100°F.This unit MUST be
installed in an area protected from the elements,
e.g., wind, rain, water spray or drips.
* The icemaker should not be located next to ovens,
grills or other high heat resources.
* The ice maker requires a continuous water supply
with a minimum pressure of 0.05Mpa and a static
pressure not to exceed 0.8Mpa. The temperature of
the water feeding into the ice maker should be
between 41°F and 90°F for proper operation. The
ambient operational temperature should be between
50°F and 100°F. Operation outside these
temperatures may result in lowered production or
other adverse effects.
IMPORTANT: Don’t
kink or pinch the power
supply cord between
the ice maker and wall
or cabinet.
