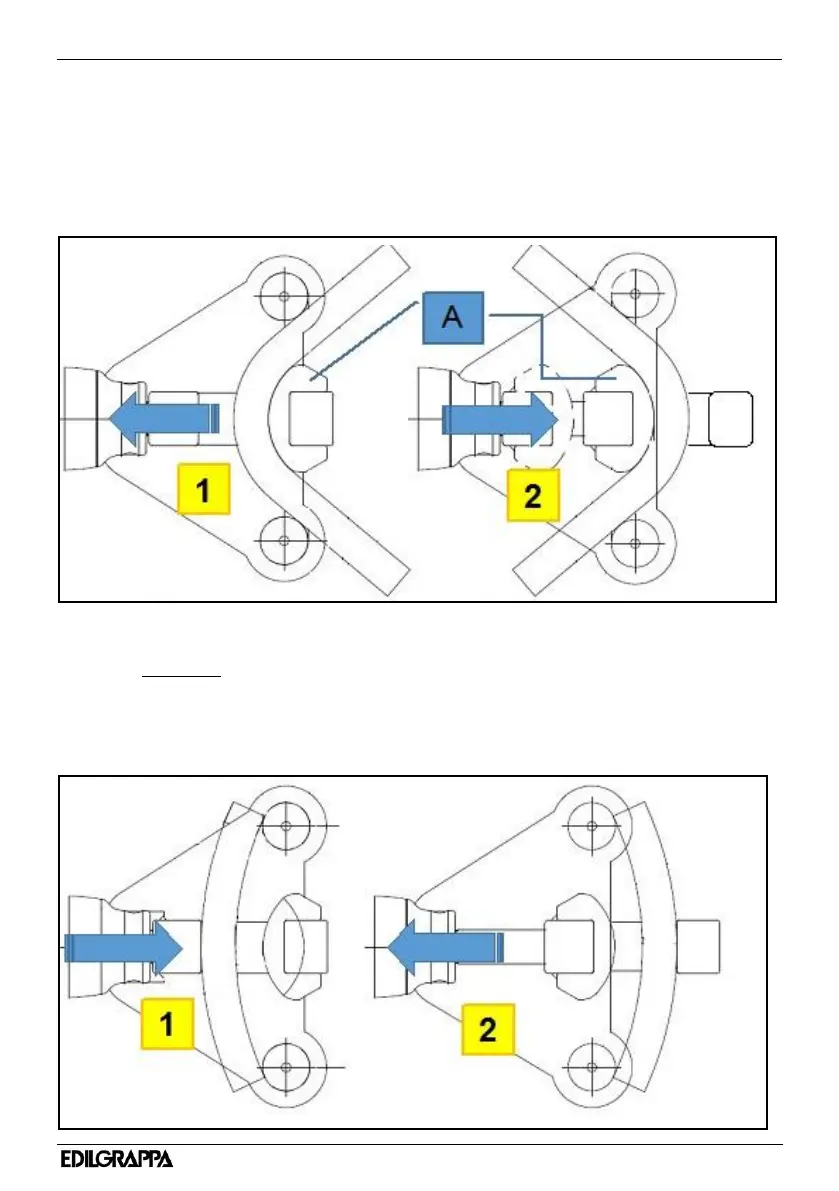

PUSH AND PULL BENDING WITH THE CAM ASSEMBLED:
Assemble the cam as described in fig. 2C (see also para 3.04), according to the bending
method to be performed (see Ref. A in fig.2C).
1. Pull bending
2. Push bending
Fig. 2C
PUSH AND PULL STRAIGHTENING WITHOUT CAM:
See fig. 2D
1. Push straightening
2. Pull straightening
Fig. 2D
