2.04.05 ADJUSTING THE HEAD
The head of this machine can be freely adjusted ( rotated by 180° ) to help the operator
during positioning and subsequent processing.
To adjust the head, simply turn the handle ( ref. 1 in fig. 2E ), as indicated by the arrows.

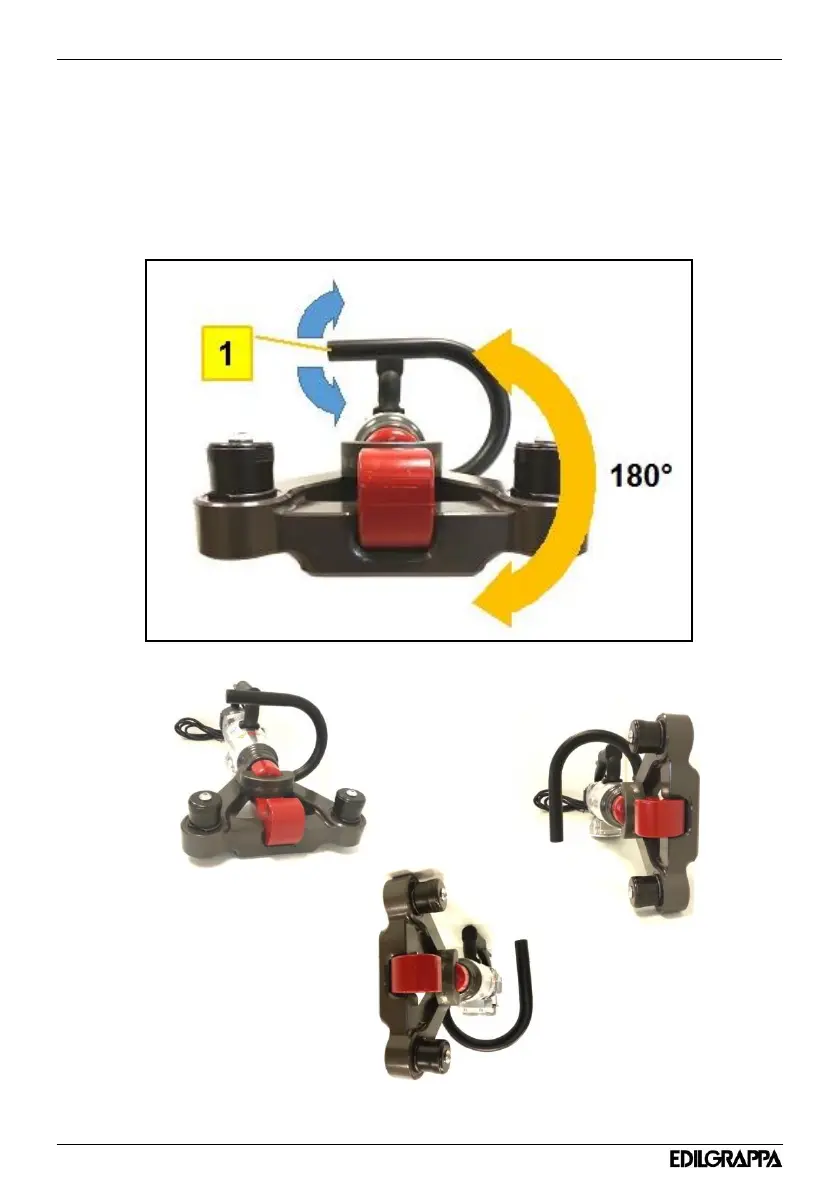

Fig. 2E
