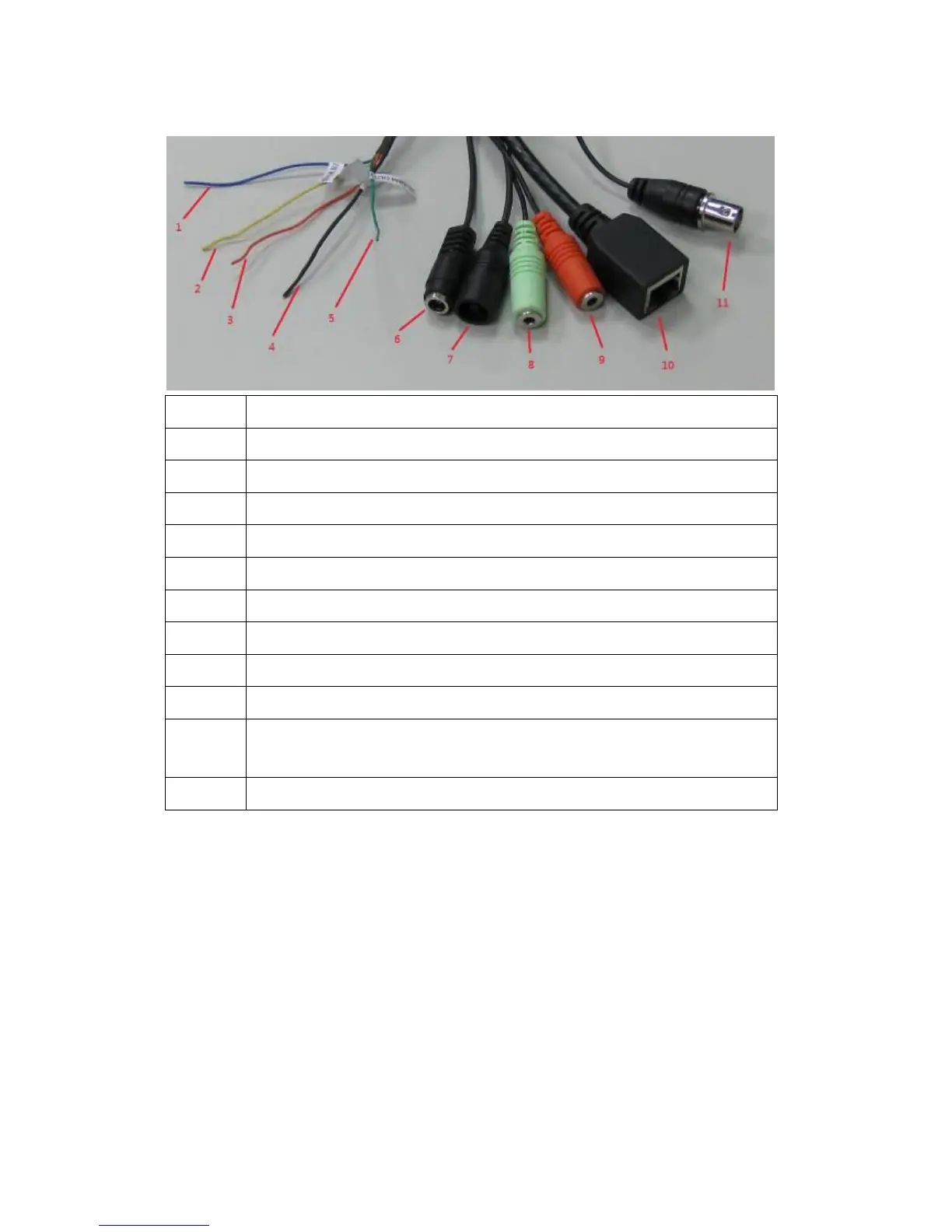

[DI/DO PIN ASSIGNMENT]
Item
Description
1
Blue, Sensor IN1, for alarm input, DV3.3Volt level allowed.
2
Yellow, RS485 D-
3
Orange, RS485 D+
4
Black, GND
5
Green, Alarm out1, DV3.3Volt level allowed.
6
DC12Volt/2A input
7
Reset Button
8
Audio output
9
Audio input
10
Network, RJ45 connector, two LED index, orange color is
power index, green is network index
11
TV output, BNC connector
※Please check the I/O cable attached index before insert or release any
wire.
