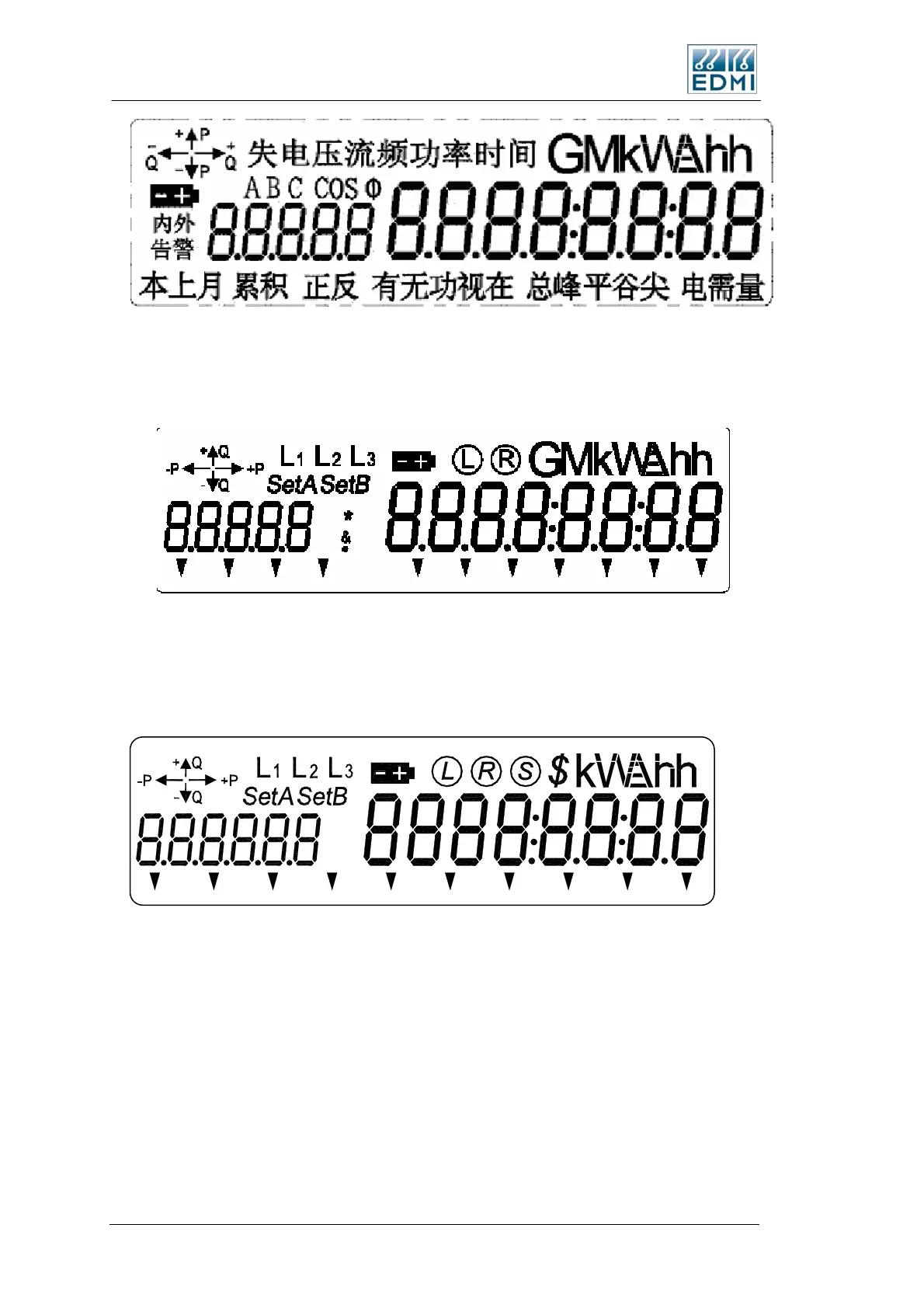

• Figure 7-2 Chinese LCD with all segments turned on
The Mk10D LCD is the same as the Mk10, but some of the segments are unused
(Figure 7-3). It has only 5 label digits, and 11 enunciators.
• Figure 7-3 Mk10D LCD with all segments turned on
The Mk10A LCD (Figure 7-4) is similar to the Mk10, but has 6 label digits and 10
enunciators. It adds a currency symbol and a SCADA port symbol, but drops the G and
M multipliers, and limits the decimal places to 4.
• Figure 7-4 Mk10A LCD with all segments turned on
