Installation

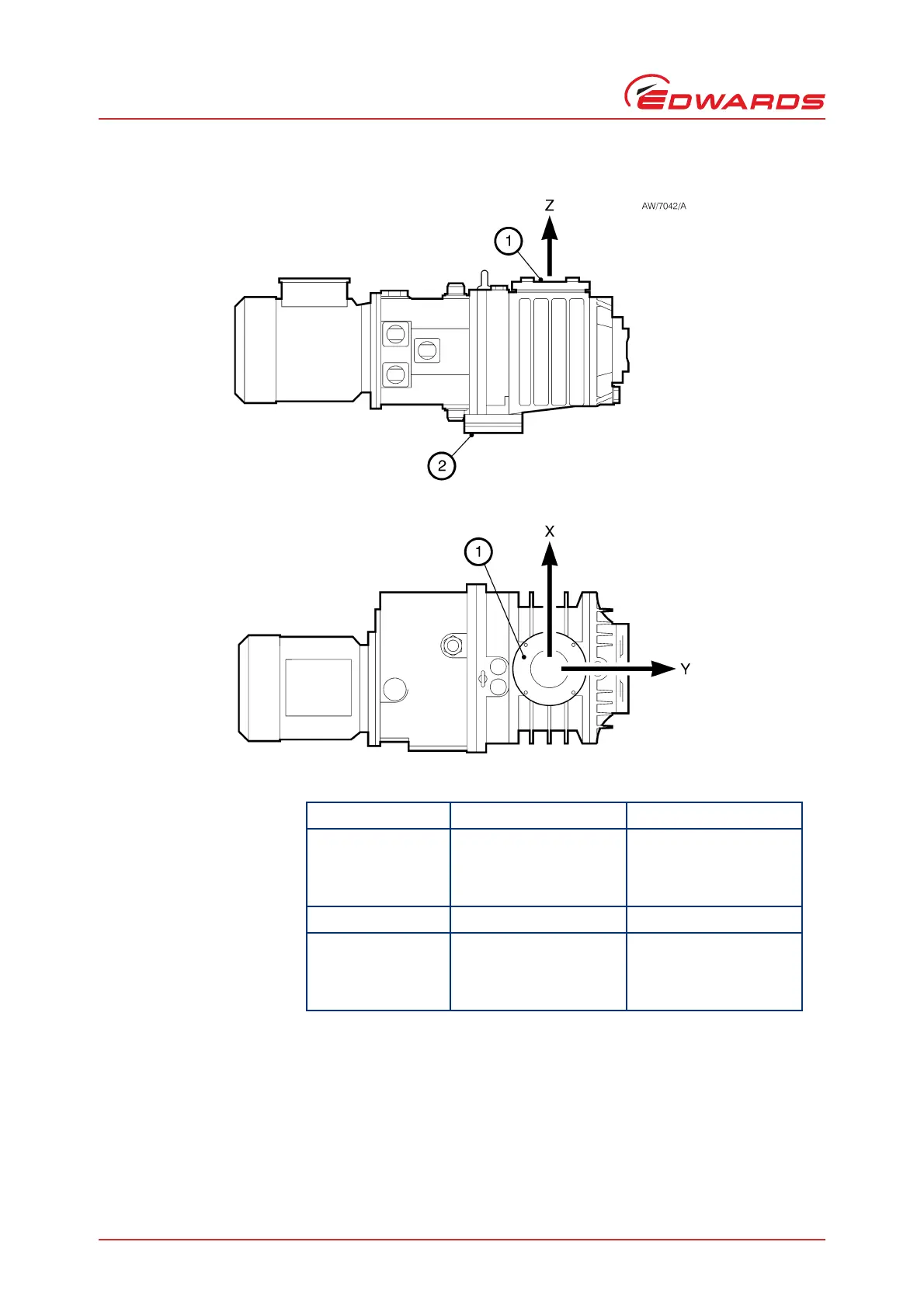

Figure 9 - Flange loading limits
3.9 External evacuation of hydrokinetic drive/gearbox (optional)
The hydrokinetic drive/gearbox may be evacuated using an external pump. A description of the connections required
is beyond the scope of this manual.
Contact the supplier or the nearest Edwards company for advice on the use of this facility.
1. Pump inlet
2. Pump outlet
FForce
MMoment
R Resultant
XLoad orientation
YLoad orientation
ZLoad orientation
Maximum force Pump inlet Pump outlet
FX
FY
FZ
FR
±1000 N
±1000 N
±2000 N
±2400 N
±224 lbf
±224 lbf
±449 lbf
±539 lbf
±750 N
±750 N
±1500 N
±1800 N
±168 lbf
±168 lbf
±337 lbf
±404 lbf
Maximum moment Pump inlet Pump outlet
MX
MY
MZ
MR
±500 N m
±500 N m
±500 N m
±870 N m
±112 lbf ft
±112 lbf ft
±112 lbf ft
±195 lbf ft
300 N m
300 N m
300 N m
520 N m
± 67 lbf ft
± 67 lbf ft
± 67 lbf ft
±116 lbf ft
Note: EH250FX pump shown. The flange loading limits apply to all EH pumps.
