Edwards GXS 250

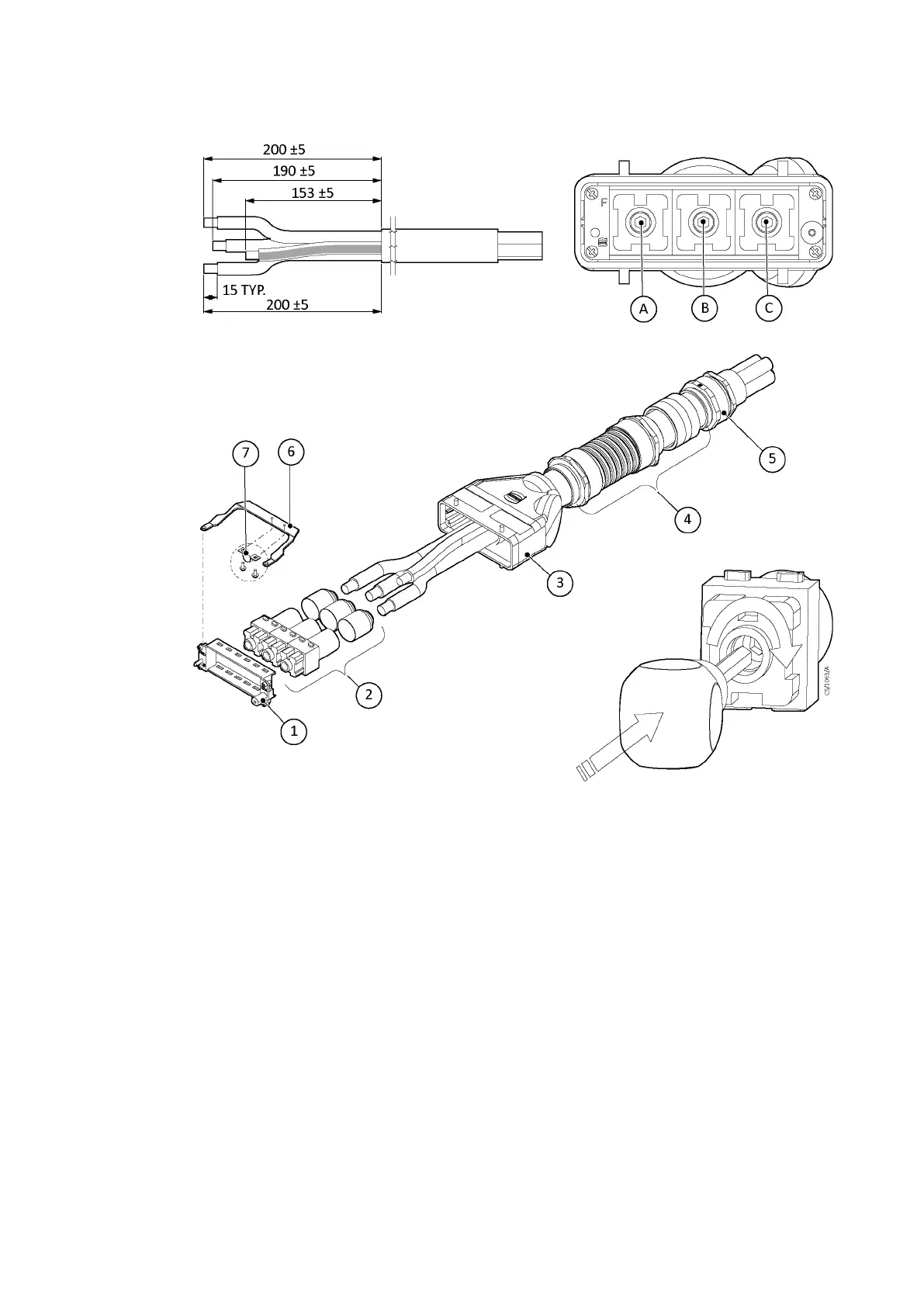

Figure 9 Customer connecon kit - combinaon low volts GXS750
A. Phase 3 B. Phase 2
C. Phase 1
A. Phase 3 B. Phase 2
C. Phase 1
1. 24 Frame hood 6 module A-F
2. 200 A female insert 4-70 mm
2
3. 24 Hood M50 4. Conduit sleeve kit 50 mm LV GXS
5. Cable gland M50 ´ 1.5
6. Earth terminal 24B LV connecon kit GXS
7. Clamp for 10 mm cable diameter ground
terminal
1. 24 Frame hood 6 module A-F
2. 200 A female insert 4-70 mm
2
3. 24 Hood M50 4. Conduit sleeve kit 50 mm LV GXS
5. Cable gland M50 ´ 1.5
6. Earth terminal 24B LV connecon kit GXS
7. Clamp for 10 mm cable diameter ground
terminal
Page 44
M58800880_H - Installaon
