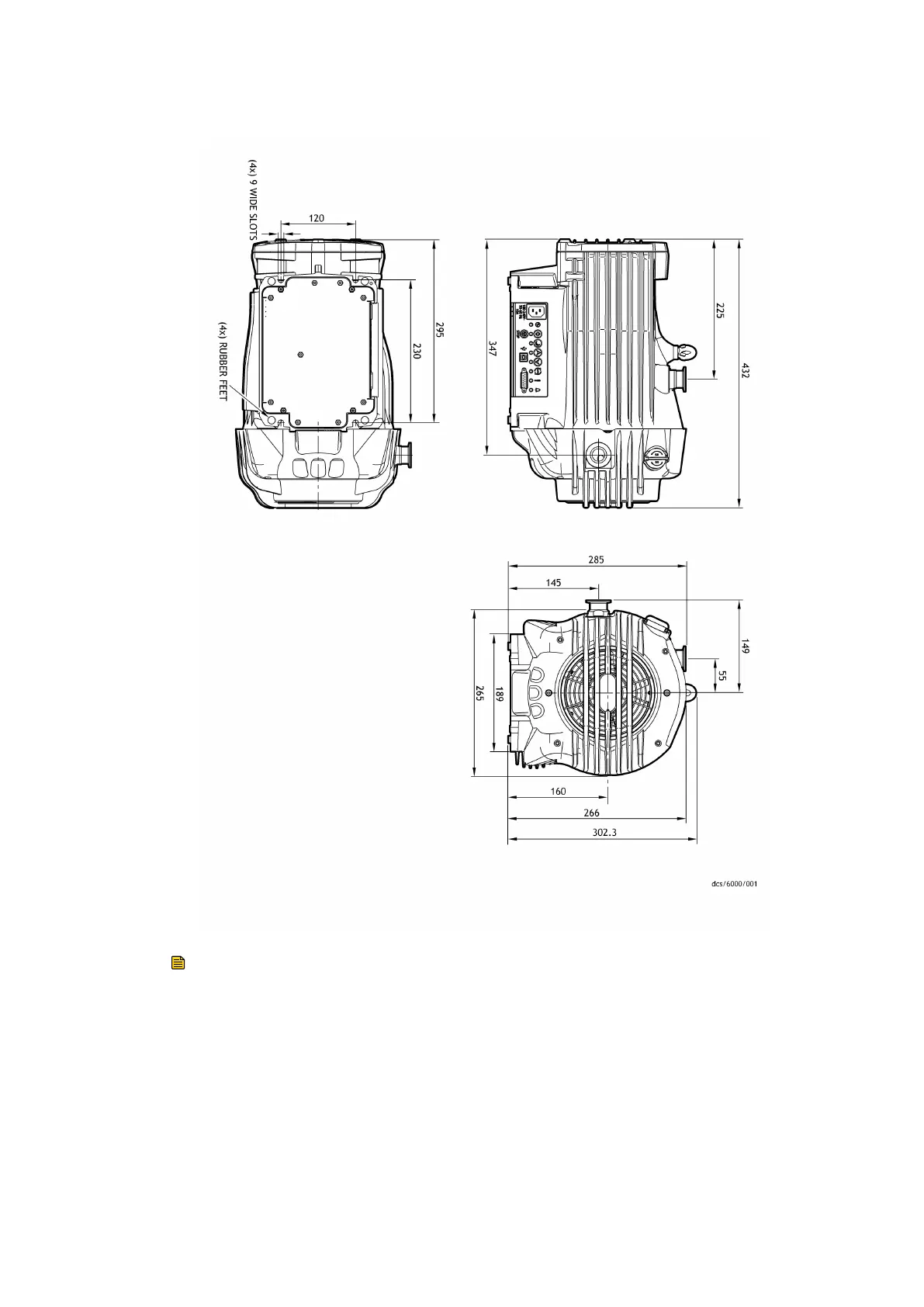

Figure 8 Installaon dr
awing
Note:
All dimensions in mm. Ex
ternal dimensions are the same for all variants.
Page 26
A73501880_G - Ins
tallaon
