Technical Data

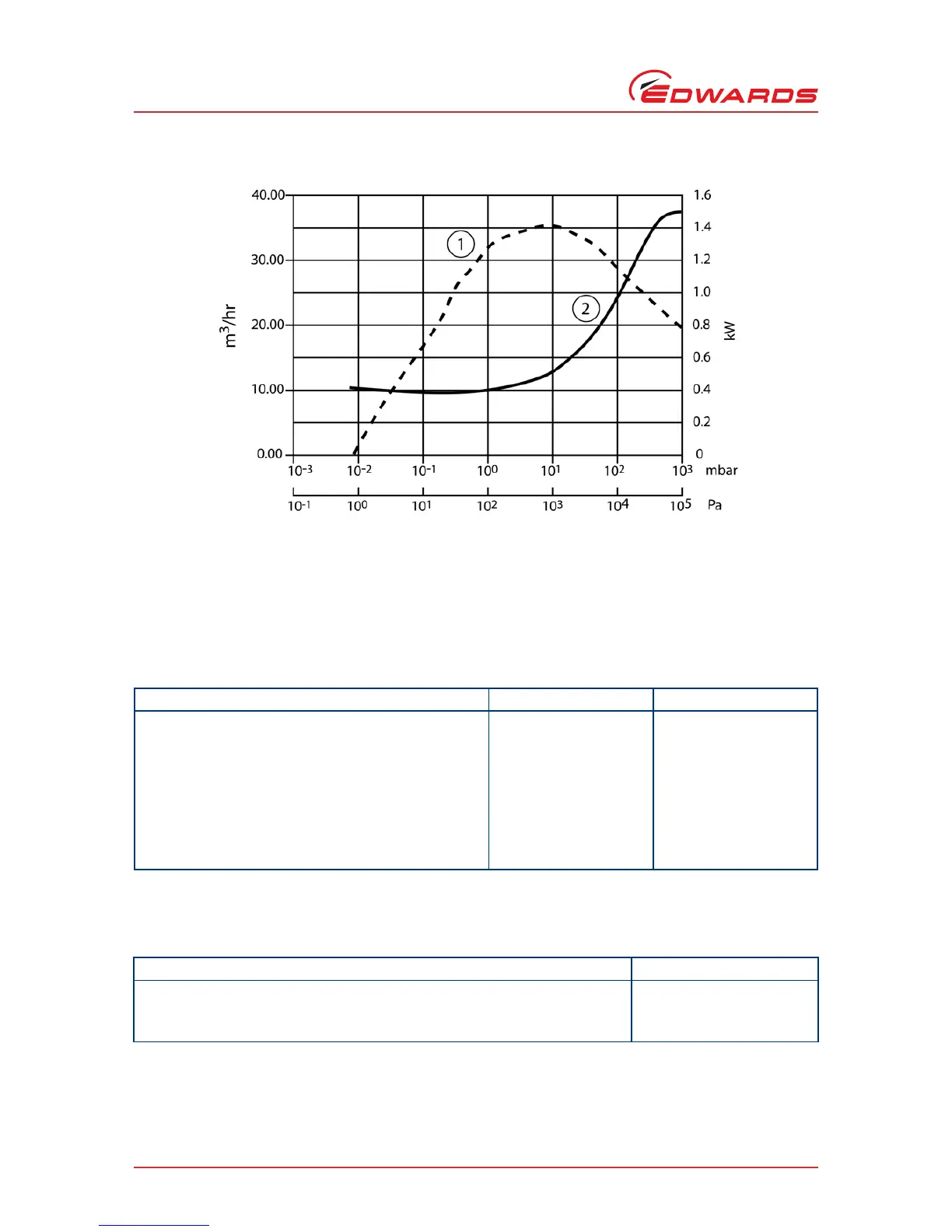

Figure 2 - Performance characteristics
2.3 Mechanical data
2.3.1 General
2.3.2 Vibration data
Table 4 - General mechanical data
Parameter Units XDS35i
Overall dimensions (L x W x H) mm 476 x 333 x 396
Maximum tilt angle degree 10
Nominal rotational speed rpm 1750
Mass kg 48
Inlet connection NW40
Outlet connection NW25
Degree of protection (IEC60529) IP44
Table 5 - Vibration data
Parameter XDS35i
Sound pressure, measured at ultimate vacuum 1 metre from the end of the pump
to ISO 11201
57 dB (A)
Vibration: measured at the inlet port (ISO3744) Class 1C…< 4.5 mms
–1
(rms)
1. Speed 2. Power
