eego amplifier EE-21x EE-22x User Manual
Rev. 5, DRN-PDO-1664 10 of 26 2016-07-11
amplifier. The trigger adapter XS-230 allows to connect eego amplifier with DSUB25 compatible
trigger sources.

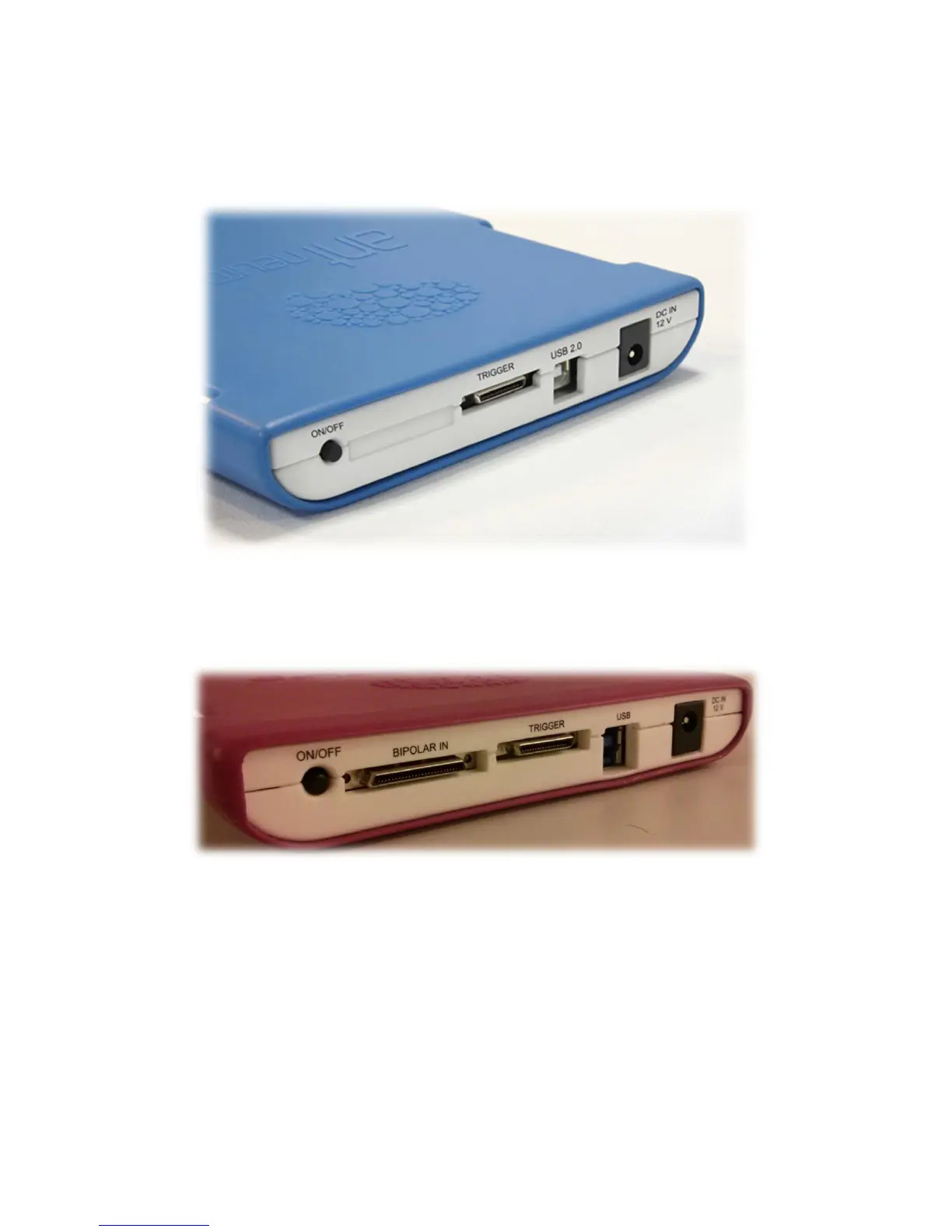

Figure 2-3. The eego amplifier shown from the rear. The ON/OFF pushbutton to the left is the power button. The
TRIGGER high density connector gives access to 8 electrically decoupled TTL lines for recording of synchronized trigger
input. The USB 2.0 connector provides access to control the hardware and to stream data. The DC IN 12 V power input is
compatible with the charger delivered with the device.
Figure 2-4. The eego amplifier shown from the rear with the optional bipolar channel high density connector (24 bipolar
channels).
