eego amplifier EE-21x EE-22x User Manual
Rev. 5, DRN-PDO-1664 11 of 26 2016-07-11

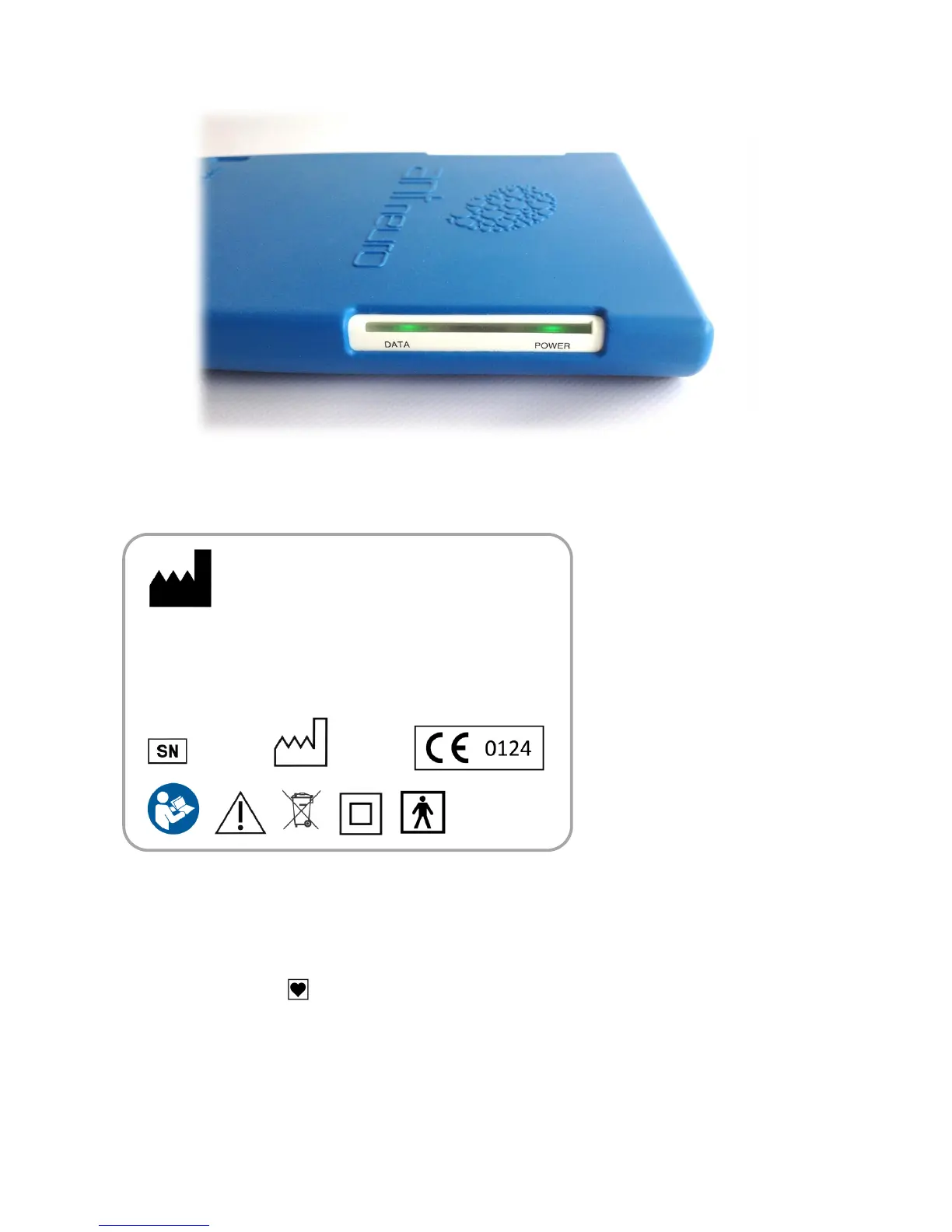

Figure 2-5. Side view of the eego amplifier with soft-shell. The LED light bars at the left and right sides work
symmetrically and contain multicolor LEDs for DATA and POWER status.
eemagine Medical Imaging Solutions GmbH
Gubener Str. 47
10243 Berlin, Germany
Product Name: eego™ amplifier
Product Code: EE-211
Revision Nr: 1.2
000123 2015
Figure 2-6. The product label at the bottom of the amplifier device shows manufacturer information, product name, code
and revision, and serial number, year of production and CE marking. The symbols in the bottom row points are explained
in Appendix C. The product code as shown, EE-211, will read EE-21x and EE-22x for corresponding different amplifier
types. Amplifier revisions below 1.2 were delivered as type CF. For revision 1.2 and above type BF is the standard (man in
box symbol). Type CF is still available on request. The manufacturer label for CF amplifiers looks slightly different
(showing the hart symbol and a product code with a CF extension).
