3) ELECTRICAL HOOK-UP
Your Eemax heater must have its own independent circuit using
insulated, UL listed, 3 wire cable of the appropriate size suitable
for use up to 75
o
C protected by the correctly rated circuit breaker.
RATINGS OF “SP” UNITS
WARNING
BEFORE BEGINNING ANY WORK ON THE INSTALLATION
BE SURE THAT THE BREAKER IS “OFF”
TO AVOID ANY DANGER OF SHOCK.

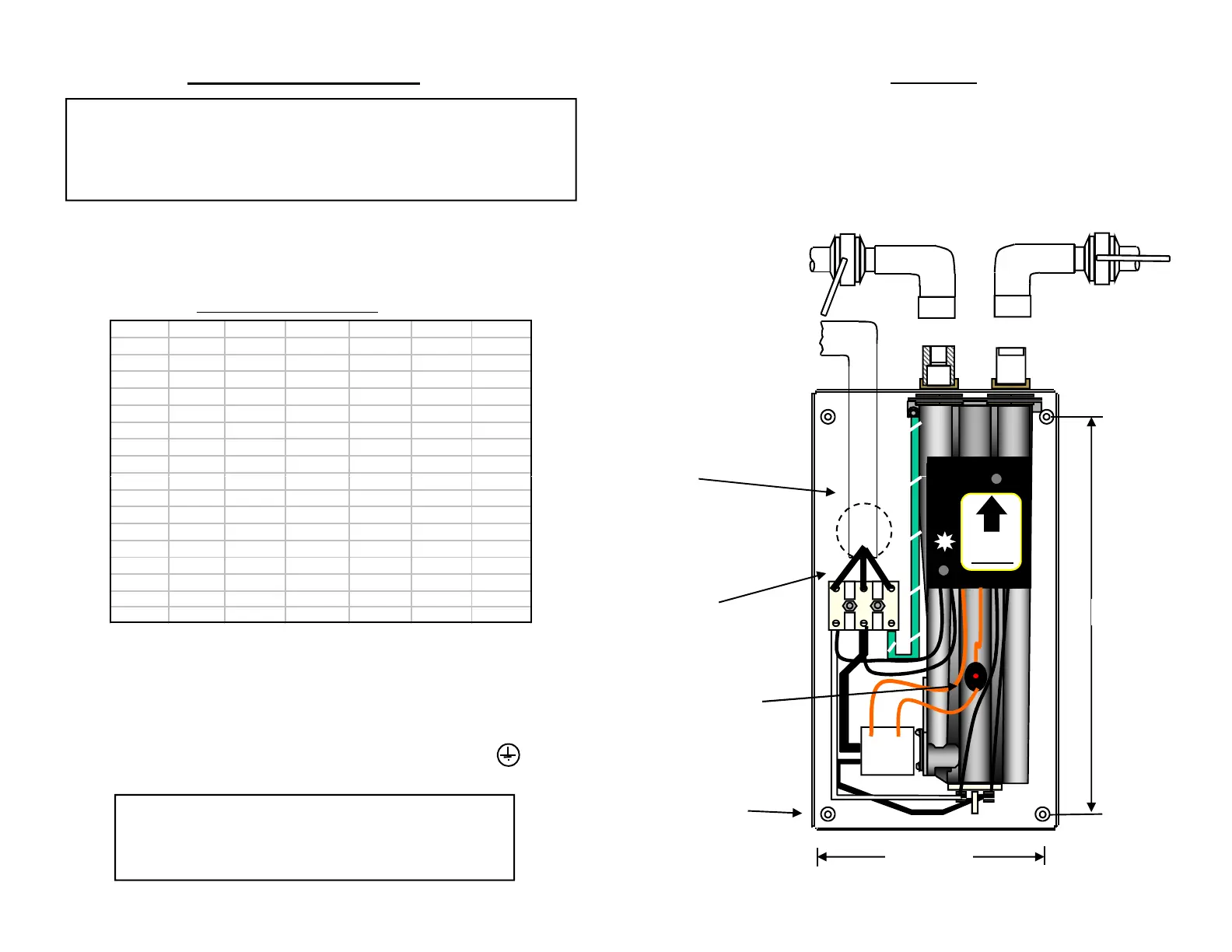

FIGURE 2
OUTLET VALVE (B)
(ADJUST TO GIVE
APPROXIMATE
DESIRED TEMP.)
SP2412 120 2.4 20 33 - -
SP3012 120 3.0 25 41 34 29
SP3512 120 3.5 29.2 48 40 34
SP3208 208 3.0 14.4 41 34 29
SP4208 208 4.1 19.7 56 47 40
SP8208 208 8.3 40 - - 81
SP3277 277 3.0 10.8 41 34 29
SP4277 277 4.1 14.8 56 47 40
TO APPROPRIATE
SIZE BREAKER
WIRE ENTRY
EITHER THROUGH
REAR OR
BOTTOM
KNOCK-OUTS
INLET VALVE(A)
(FULLY OPEN)
* The heaters are rated at 240 Volts. If the actual voltage supplied is lower
(220, 208V) there will be a proportional drop in output.
1) Wire entry into the unit should be made through the lower right hand corner of
the backplate via one of the two “knockout” holes provided.
2) The “mains” wires should be connected to the slots in the terminal block marked
L1 and L2 or N. The ground lead MUST be connected to the marked.
Failure to ground the system may result in death or serious injury.
WARNING:
This water heater must not be switched “on” if there is
a possibility that the water in the heater is frozen.
SP80 277 8.0 29 - - 78
SP90 277 9.0 33 - - 88
SP100 277 10.0 36 - - 97
SP35 240* 3.5 14.6 48 40 34
SP55 240* 5.5 22.9 75 63 54
SP65 240* 6.5 27 - 73 63
SP75 240* 7.5 32 -
73
SP95 240* 9.5 40 -
MOUNTING HOLES
4 1/4 inches
8 inches
APPROPRIATE
GAUGE COPPER
WIRE (2 conductors
1 ground)
INSTALL
THIS WAY UP
ONLY !
UP
relay
ECO – RE-SETABLE HIGH
TEMPERATURE CUT-OUT
