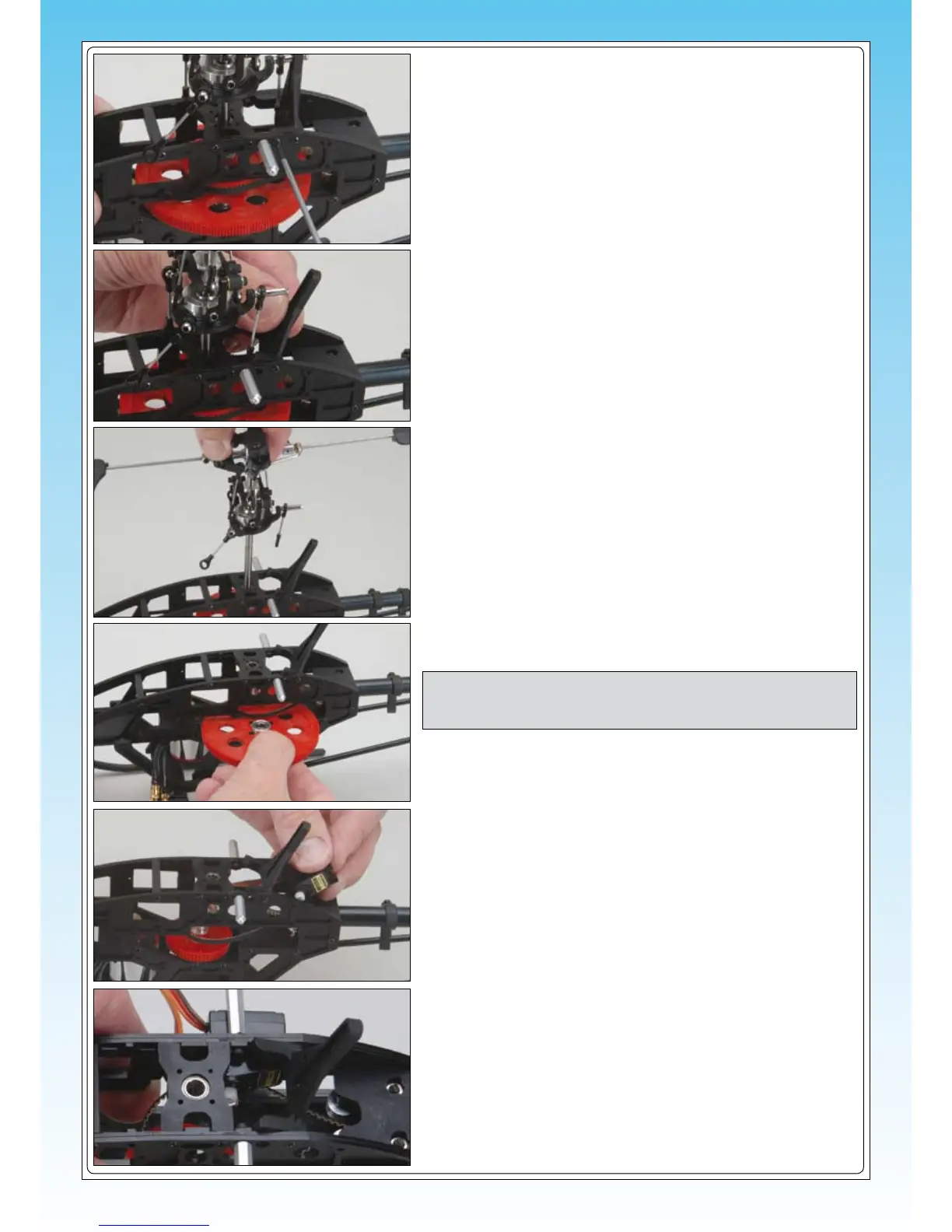

❑ Now remove the two forward screws that retain the swashplate
anti-rotation link.
❑ The anti-rotation link can now be rocked backwards to clear the swashplate
as shown.
❑ The complete shaft assembly can now be withdrawn from the model and
put to one side.
❑ Slide the main gear out of the frames.
NOTE You do not need to remove the tail drive gear. If you leave it in
place it helps ensure that the tail drive belt cannot twist or fall
back into the boom.
❑ The fore/aft servo can now be slid under the anti-rotation link and between
the main frames. Note the orientation of the servo.
❑ The servo is installed into its mount as shown after pulling its lead through
the main frames.
