A.5.3 Switch contactor 42V
A.5.4 Wire cross section for EFA saws with switch contactor

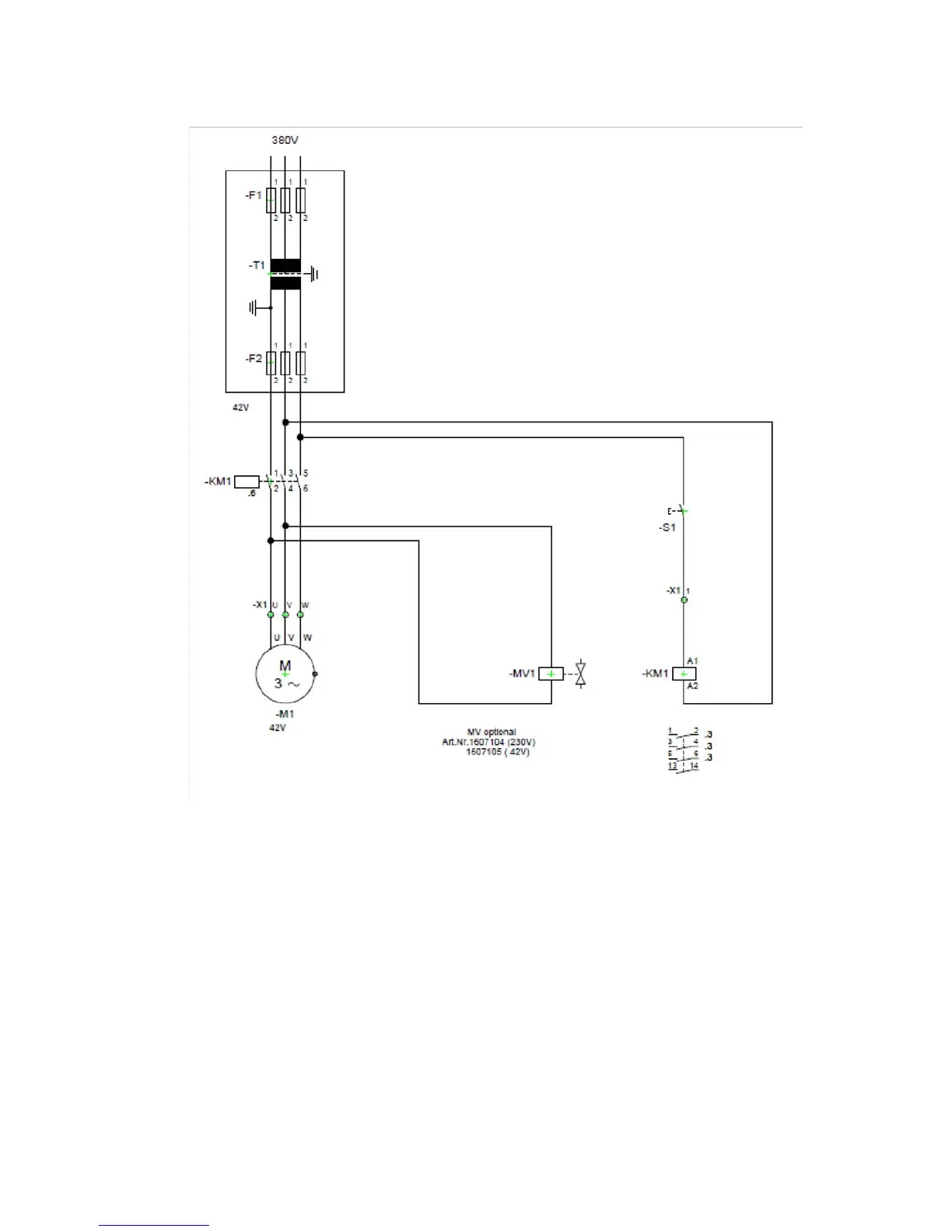

The circuit diagrams of the control system are in the control box.
If you require additional copies of the diagrams, please contact us, quoting the following order numbers:
Product no. 001 604 101 (42V)
The following specifications refer to line (Length L)
between the transformer and the control box.
Cross-section (A) must consist of 3 wires. Conductor material: Copper
