NORMAFIX
9

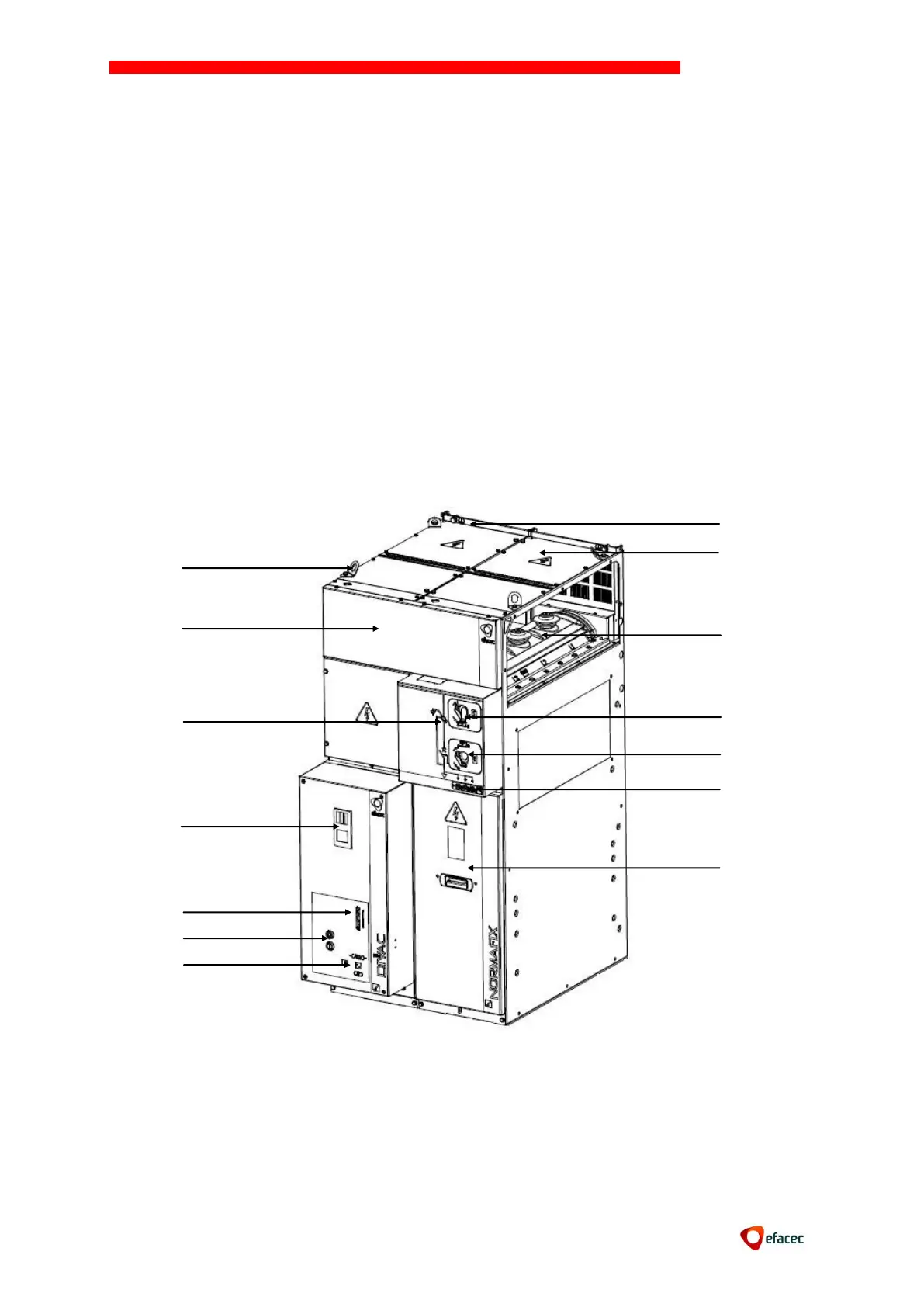

Cubicle DC
1- Accessories for lifting the cubicle
2- Low voltage compartment
3- Mechanical synoptic state of switch disconnector
4- Self-powered protection relay
5- Hole insert lever (charging the springs of circuit breaker)
6- Button to open and close the circuit breaker
7- Mechanical synoptic state of circuit-breaker
8- Earth main bar
9- Busbar access panel
10- Disconnector SF
11- Earth switch operating mechanism
12- Disconnector operating mechanism
13- Live cables signaling neon lamps
14- MV Cables access panel
2
1
8
9
10
3
4
6
7
5
11
12
13
14
