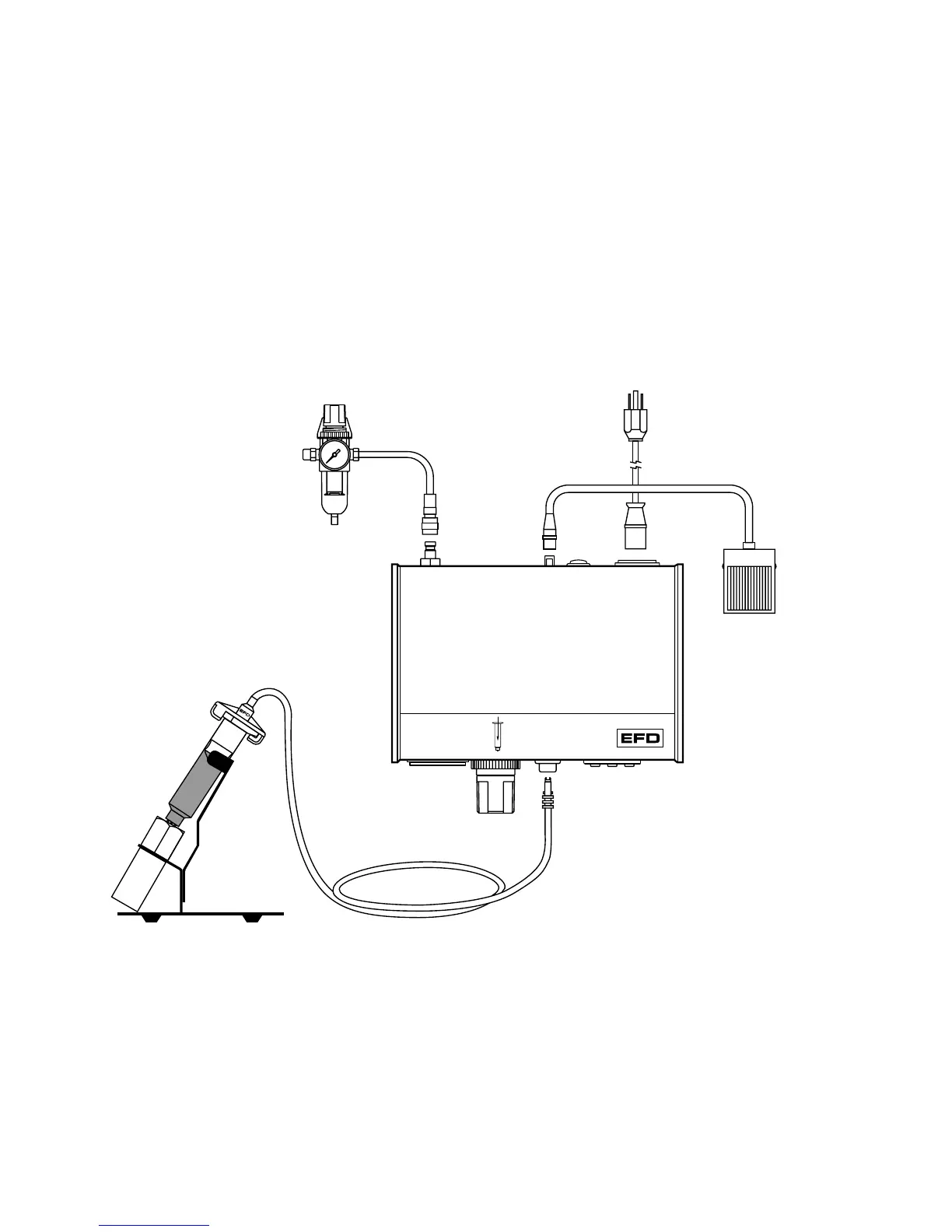

EFD 1500XL - 1500 D Hookup: Connection Diagram

16
Check voltage label
on dispenser
❸
❷
❶
Plant air, 125 psi maximum to
regulator. Output from regulator
should be a minimum of 80 psi,
maximum of 100 psi.
Male quick-connect,
insert and twist to lock
Blue
test fluid
Foot pedal
assembly
Power cord
Adapter
assembly
❻
❹
❺
Air input
hose
1500D
