Once your dispenser is set up, return to these pages to familiarize
yourself with the various functions of the microprocessor controls.
Disconnect the male quick-connect on the barrel adapter hose from
the dispenser before testing each function to prevent inadvertent
fluid dispensing.

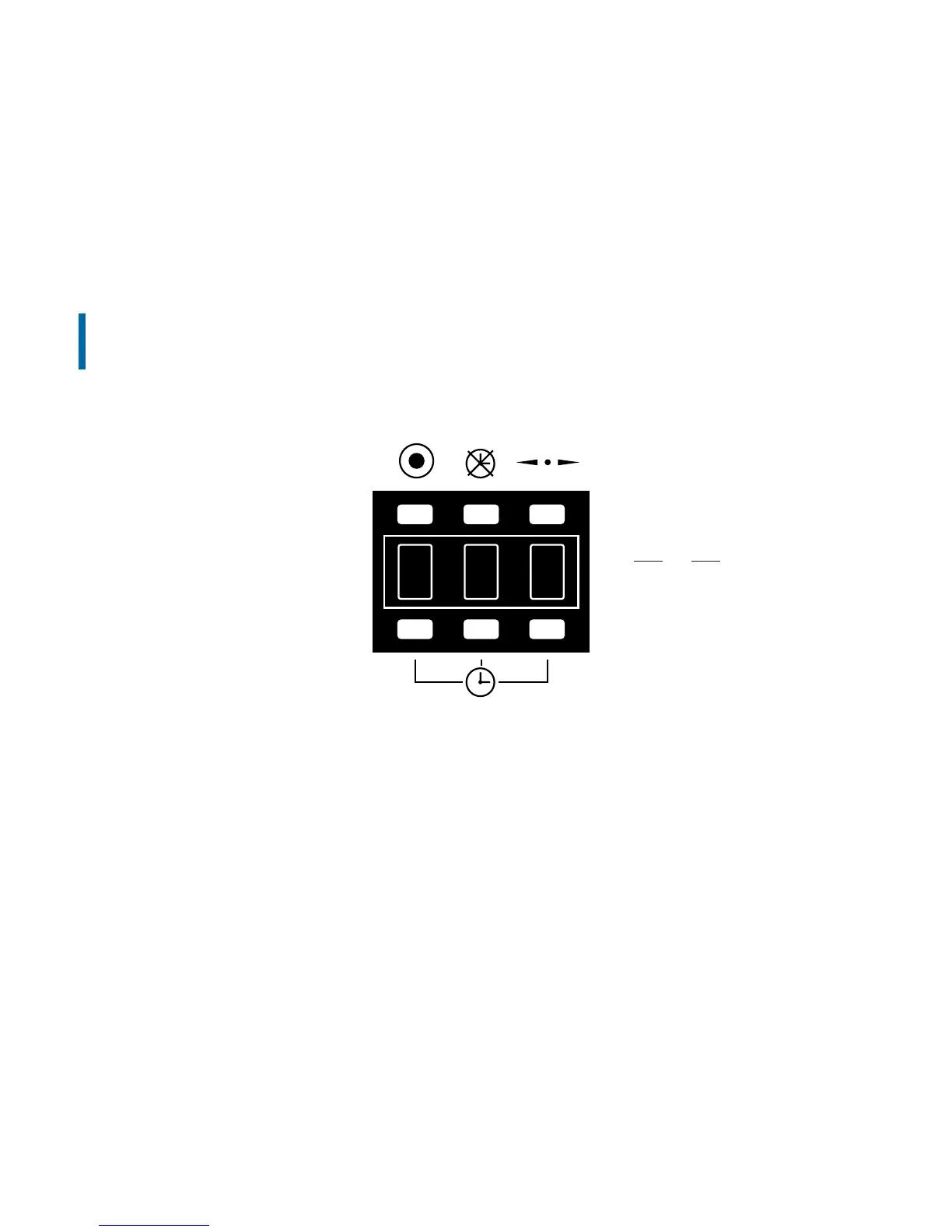

Microprocessor Control
❶ Program mode
Press to clear the display. Any
decimals will disappear and the
time range will reset to 000. Dis-
play alternates bright and dim to
indicate the program mode.
❷ Timer bypass mode
Press once and the display
changes to - - - (dashes). Foot
pedal now controls liquid flow.
Press again and dashes are
replaced by previously set time.
❷
❶
❸
❸ Decimal button
Press to move decimal. When
no decimal shows, time range is
.000 to .999 seconds.
❹ ❺ ❻ Time set buttons
Each button sequentially con-
trols the display digit in that
panel. Each press advances
the display 0.....9 and repeats.
To Next Page
