TRIUMPHATOR 1700X / 1800X
6

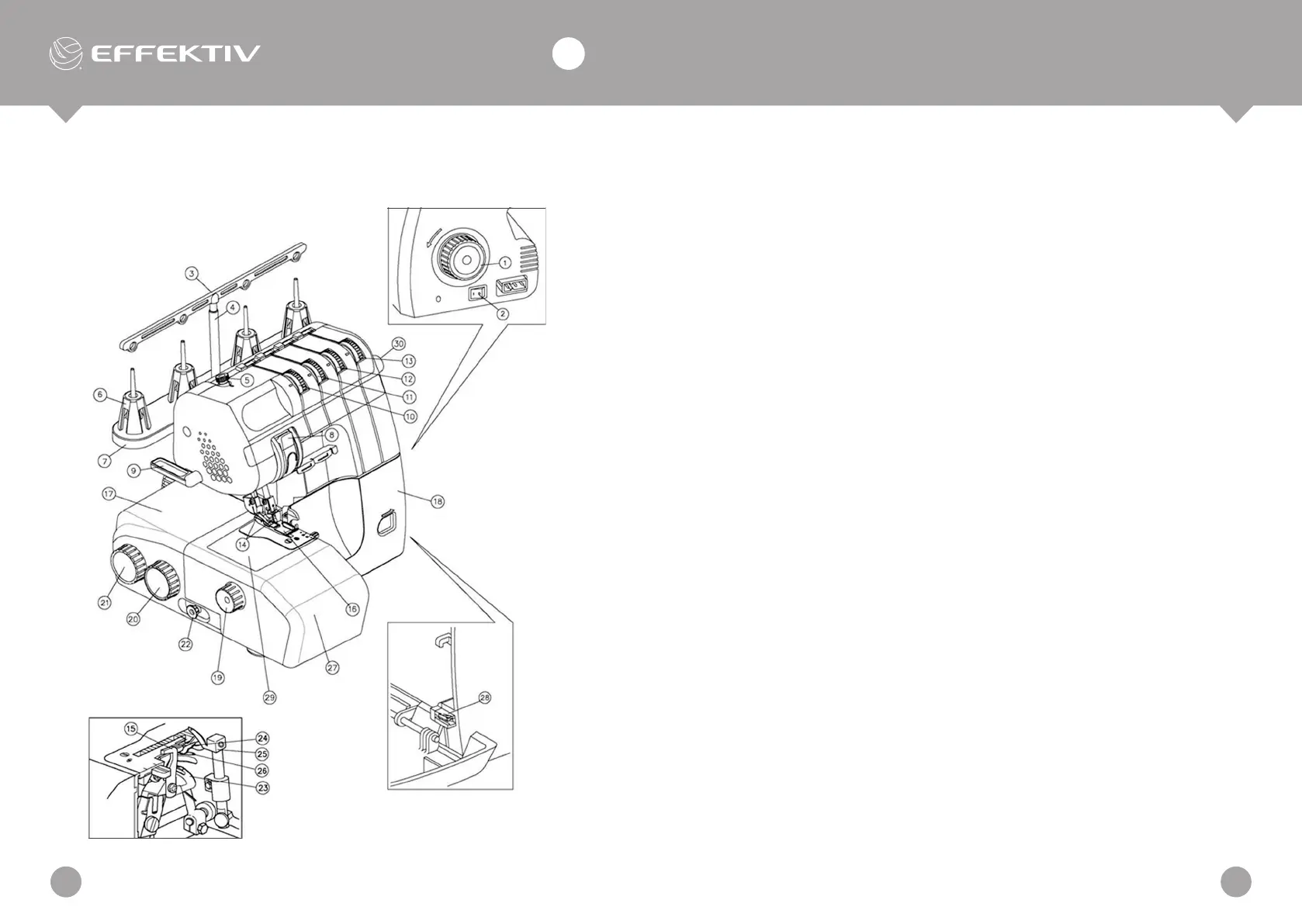

PRINCIPAL PARTS (NAMES)
1. Handwheel
2. Power/backlight switch
3. Thread quide
4. Thread guide support rod
5. Presser foot adjusting screw
6. Spool retainer
7. Spool holder
8. Thread guide lid
9. Pressure foot lifter
10. Left needle thread tension regulator
11. Right needle thread tension regulator
12. Upper looper thread tension regulator
13. Lower looper thread tension regulator
14. Needles
15. Upper knife
16. Presser foot
17. Fabric placement platform
18. Front lid
19. Stitch width regulator
20. Stitch length regulator
21. Differential feed regulator
22. Upper knife regulating knob
23. Lower looper thread guide
24. Feed dog rack gear
25. Upper looper
26. Lower looper
27. Sleeve platform
28. Microfuse
29. Sleeve platform lid
30. Instant thread tension release button
