Verifying connection to the network
Verifying connection to the network
The Fiery X3eTY provides twisted pair connectivity to an Ethernet network. This section
describes how to connect the Fiery X3eTY to the network and then print a few test
documents in order to verify the connection.
Depending on your network speed, the following unshielded twisted pair (UTP)
network cables are supported:
•For 10BaseT, Category 3 or higher
•For 100BaseTX, Category 5 or higher (4-pair/8-wire, short-length)
•For 1000BaseT, Category 5e or higher (4-pair/8-wire, short-length)
NOTE: If the print engine is 230V, use a shielded network cable.
The network cable connects to the LAN port on the connector panel of the Fiery X3eTY
(see Figure P).

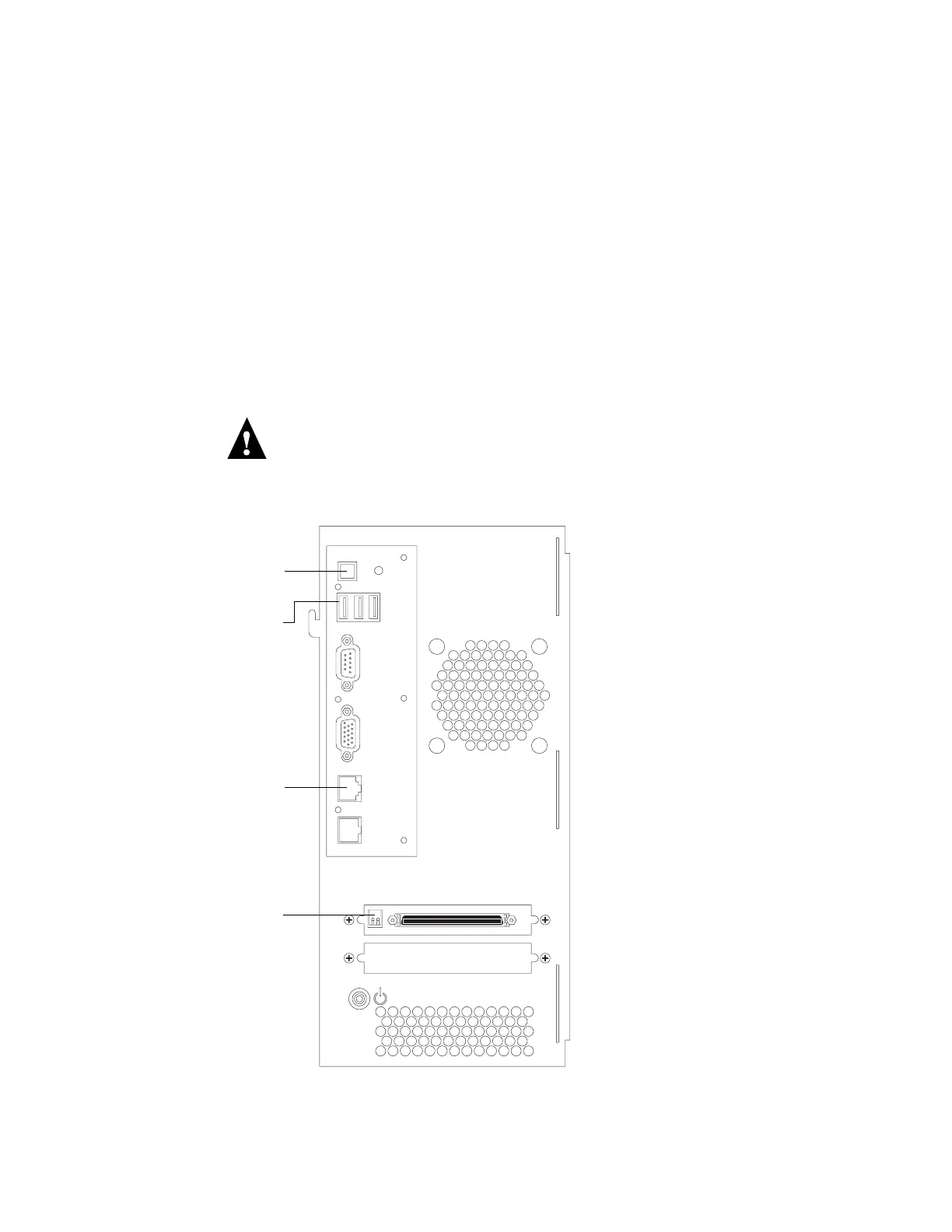

FIGURE P Network connectors and service switches
LAN port for 10/100/1000BaseT
twisted pair Ethernet
Service switches
USB Type B port for connection
to a computer for system
software installation or printing
USB Type A ports (3) Either can
connect to a USB flash drive for
system software installation
