QS Series Basic Operator's Guide
Collar
9 Click Load Web ( ) to lift the rear media hold down
assembly.
10 Continue loading the media through the printer by
feeding the media across the conveyor belt. Lift the
outfeed media hold down assembly if necessary.
11 Move the leading edge of the media through the printer.
Pull on the media to make sure it is straight and smooth.
Remove any wrinkles before printing.
12 Using the air nozzle, charge, or pressurize, the rear air
core shaft until the core is secure.

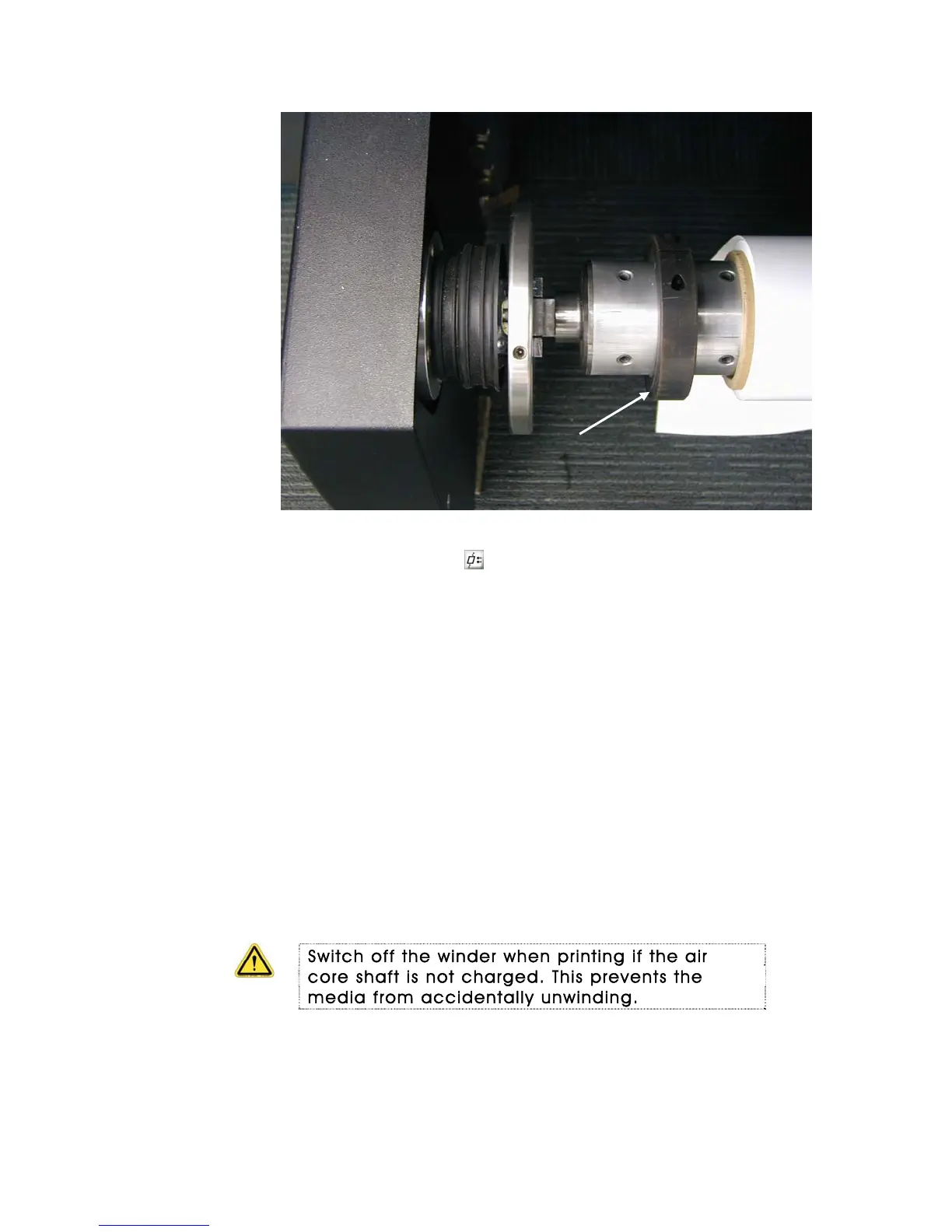

The air core shaft holds the rolled media. Charging the air
core shaft secures the media roll to the shaft.
If you don’t charge the air core shaft, the media roll can
spin freely (and independently of the air core shaft and
the winder). This may be useful in some applications.
Switch off the winder when printing if the air
core shaft is not charged. This prevents the
media from accidentally unwinding.
13 Place an empty roll on the rewinder air core shaft.
14 Install the air core shaft (with the empty roll) on the
rewinder (front), and apply air.
OMM-00038-US English-F 19
