QS Series Basic Operator's Guide
Adjustments and Calibrations
Setting the head gap
The printer automatically adjusts the carriage height at the
start of each print. The total carriage height is the sum of the
assigned print gap plus the media thickness as measured by
the printer.
During installation, the print gap is set to 0.060” (0.1524
mm) with the carriage height adjustment knob turned fully
clockwise.

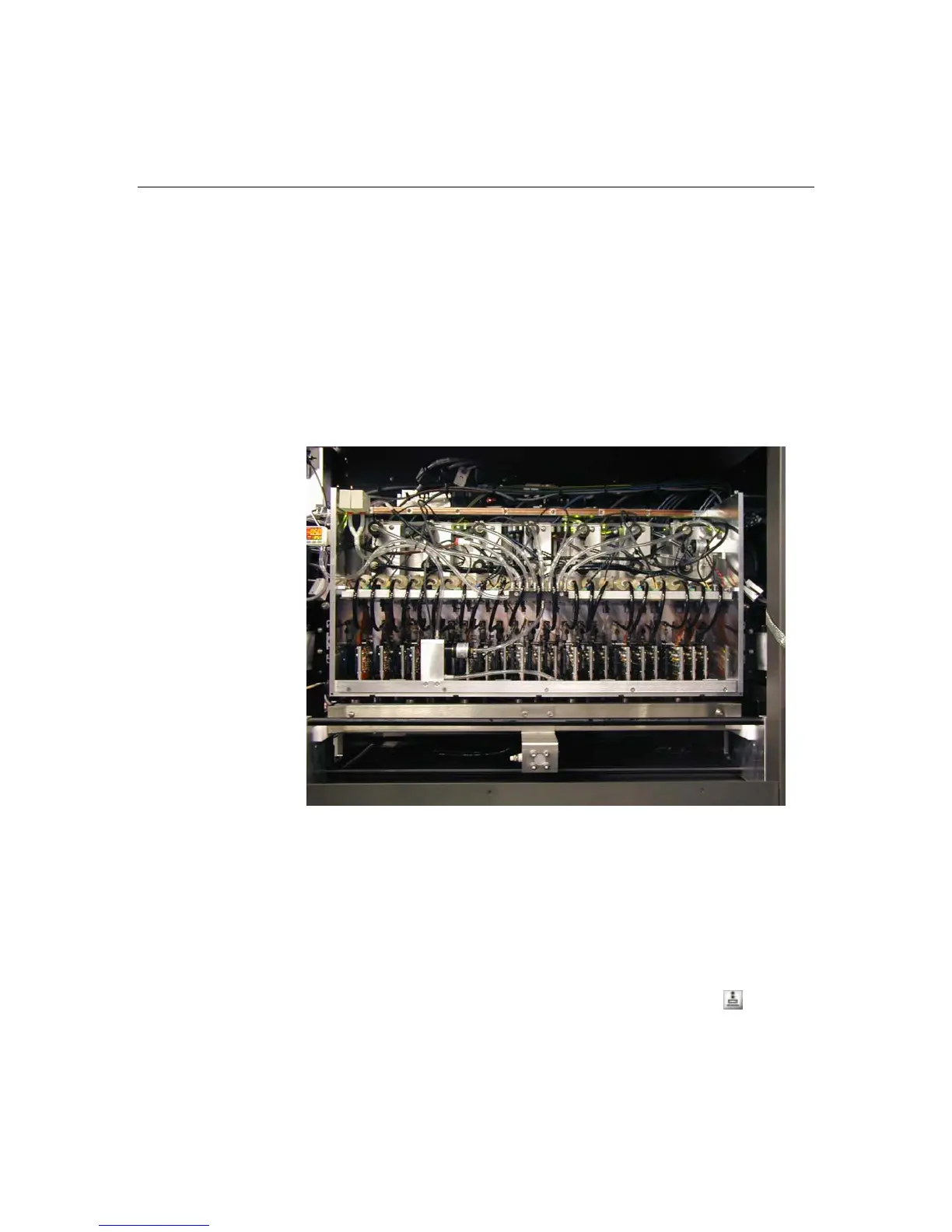

Carriage
Adjusting the head gap
1 Load the media you want to check the head gap for.
2 From the VUTEk User Interface Service menu, click
Service Aids.
3 In the Service Aids dialog box Carriage Maintenance
Positions section, click Set Carriage Height (
).
The carriage moves to the right side of the print area,
drops onto the media and locks in place.
OMM-00038-US English-F 29
