QS Series Basic Operator's Guide

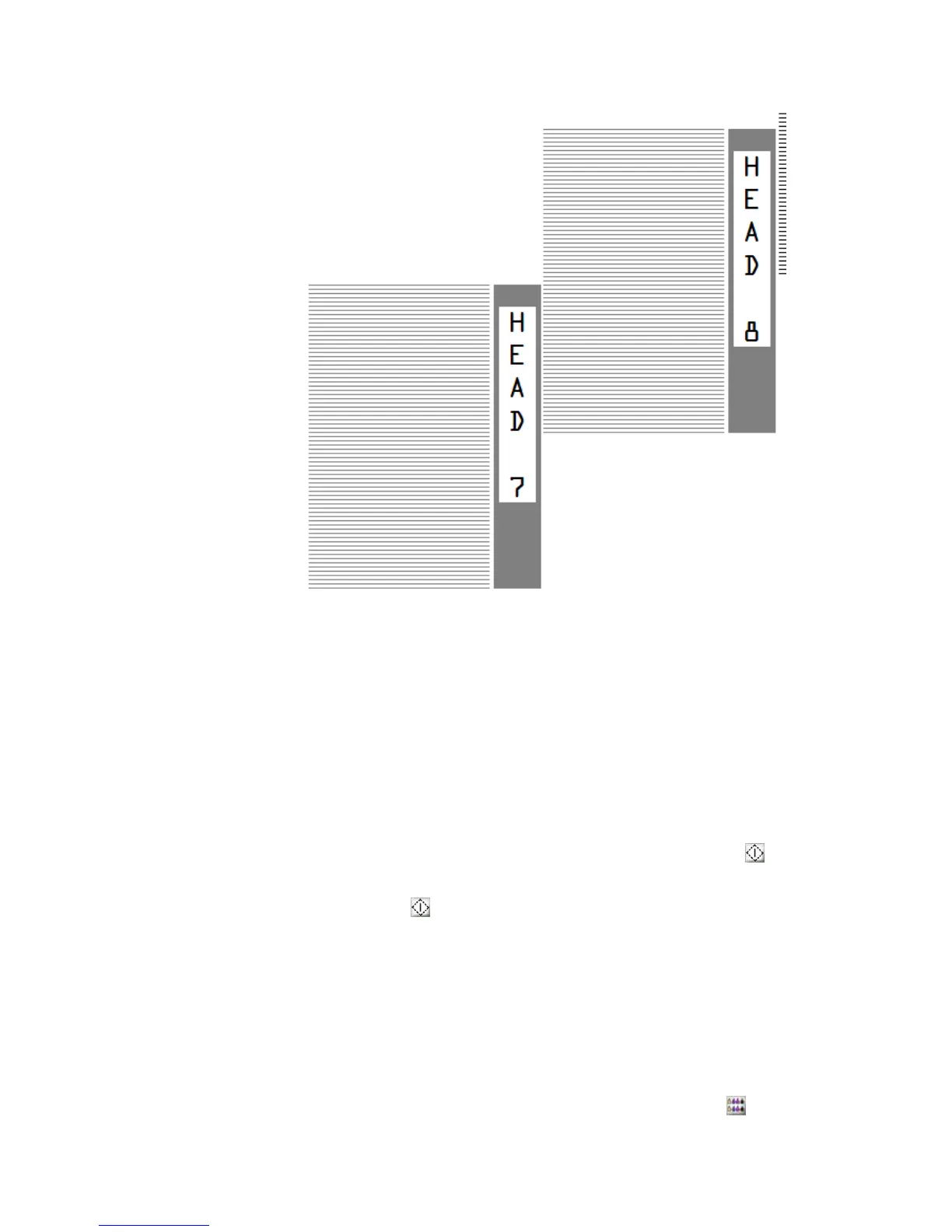

A sample of the jet test pattern (partial)
The test pattern creates solid and lined areas that
correspond to each nozzle in the jet pack for the color being
tested. Missing line segments or faded blocks indicate that
the jet pack’s nozzles are not firing properly. Because each
line segment corresponds to a single nozzle, you can easily
identify which jet packs are missing nozzles.
Printing a jet test pattern
1. Load media into the printer.
2. From the VUTEk User Interface, right-click Test (
), on
the popup menu, click Check Jets.
3. Click Test (
).
4. If any line segments are missing, use the jet pack clearing
procedure, below, to recover the missing nozzles.
Quick purge
If you detect a missing line segment in the test pattern, begin
by using the following procedure to recover the nozzle.
1. From the VUTEk User Interface, choose Quick Purge
from the Service list and then click Purge All (
).
