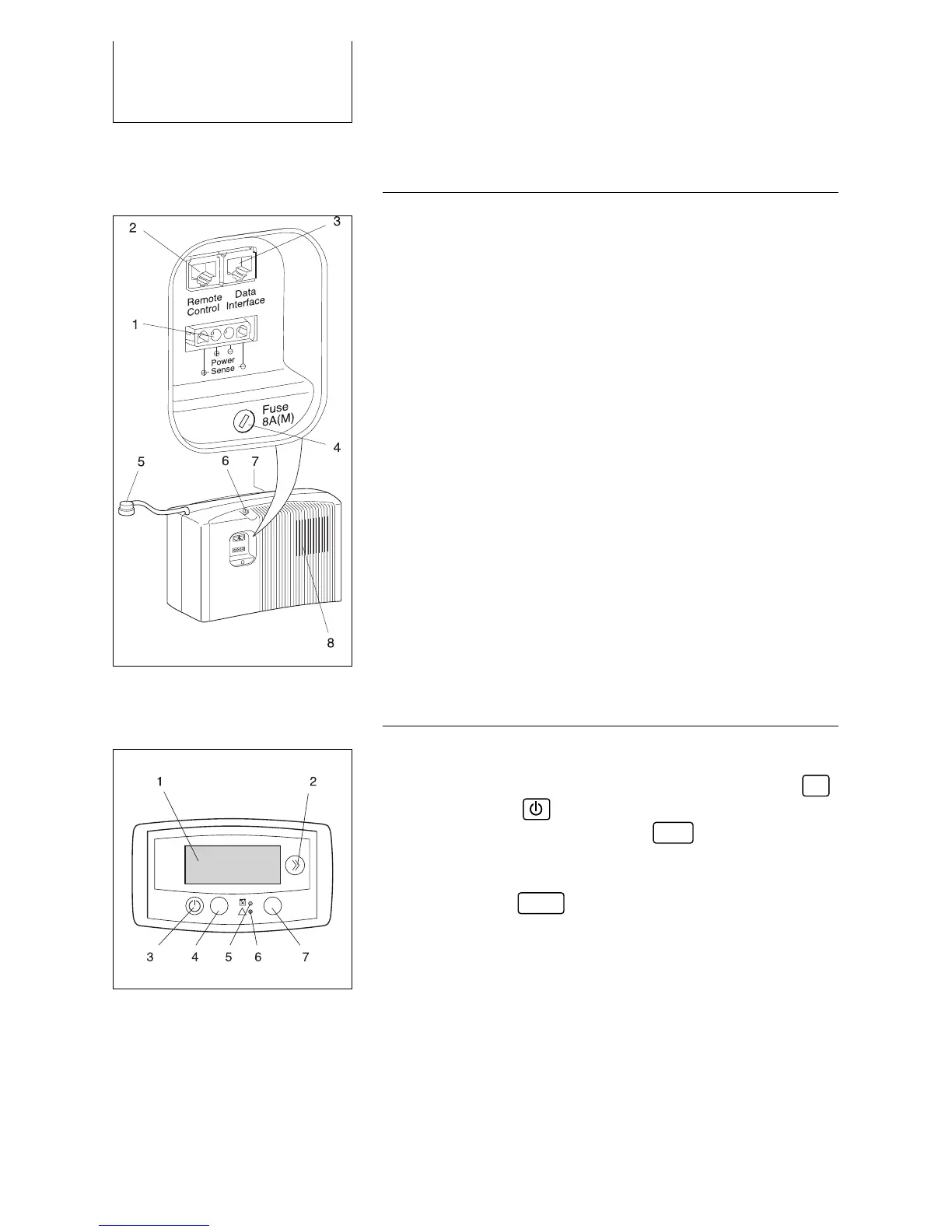

1 Charge line connection
2 Remote-control connection RC 1
3 Data interface
4 G-fuse 250V 8A M, 5 x 20 mm
5 Fuel-cartridge connection
6 Connection for EH 1 exhaust hose and nozzle for
service fluid
7 Cooling inlet (reverse)
8 Warm-air outlet and connection for off-heat duct
3.3
Remote Control
auto
reset
!
1 Display
2 Information button and language-selection button >>
3 On/Off button
4 Button for automatic operation
auto
5 Yellow warning light “Please change fuel cartridge“
6 Red error warning light
7 Reset button reset
