4. Installation
21
4. Strap the unit tightly to the mounting plate.

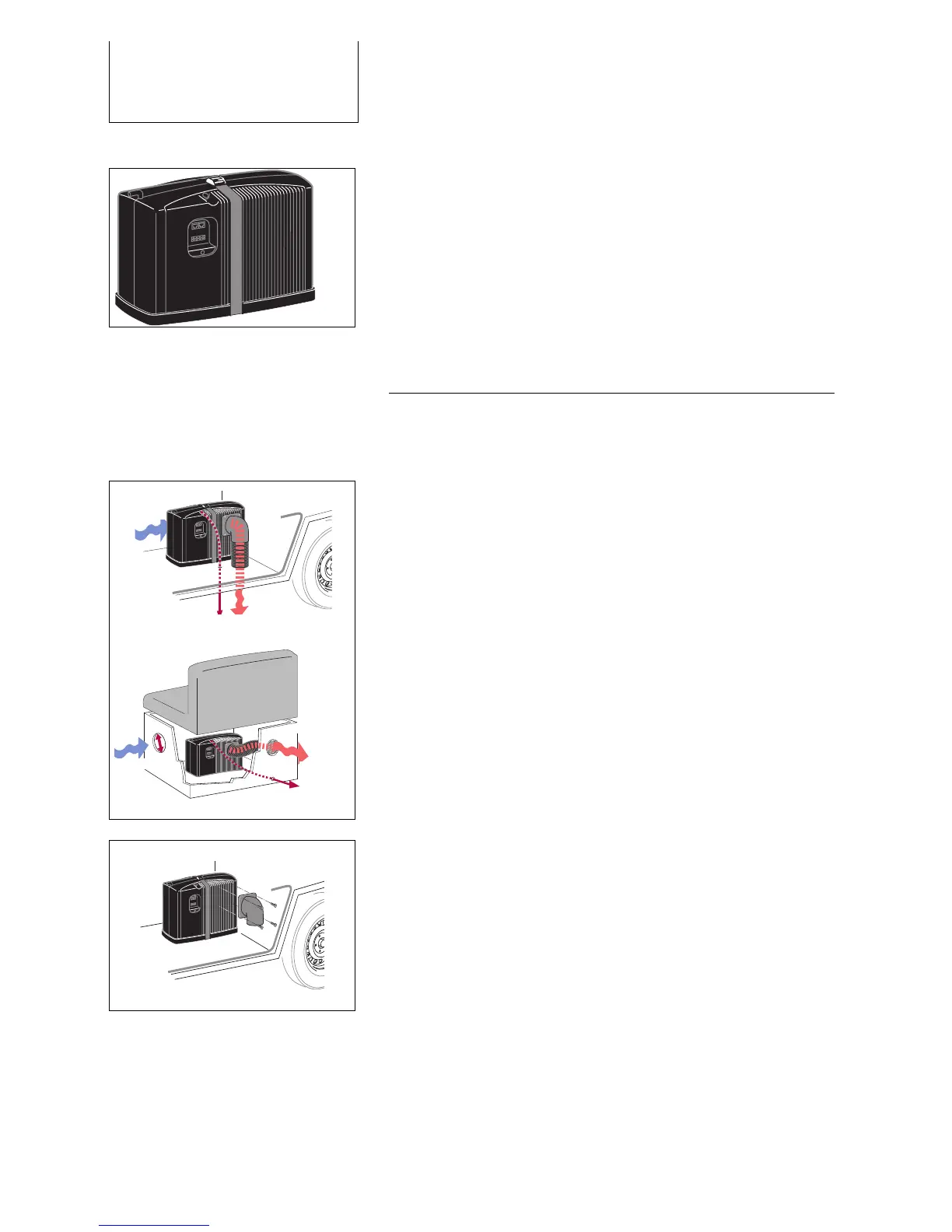

4.5 Off-heat duct
The off-heat duct (included) extracts warm air so that the
unit can also be operated in close quarters.
Z
uluft
Abluft erwärmte Kühllu
ft
ø min.
10 cm
Zuluft
Abluft
erwärmte
Kühlluft
Use the bow to conduct warm air to the side.
If you do not need the off-heat bow, you can disconnect it
from the off-heat flange and connect the off-heat tube
directly to the flange.
Make sure that the off-heat tube is not kinked; use a
second bow if needed.
Sink the screws for the off-heat flange into the holes
provided.
cooling
air
exhaust warm air
warm ai
r
cooling
ai
r
exhau
