EFOY 600 - Page 29

4. Installation
29

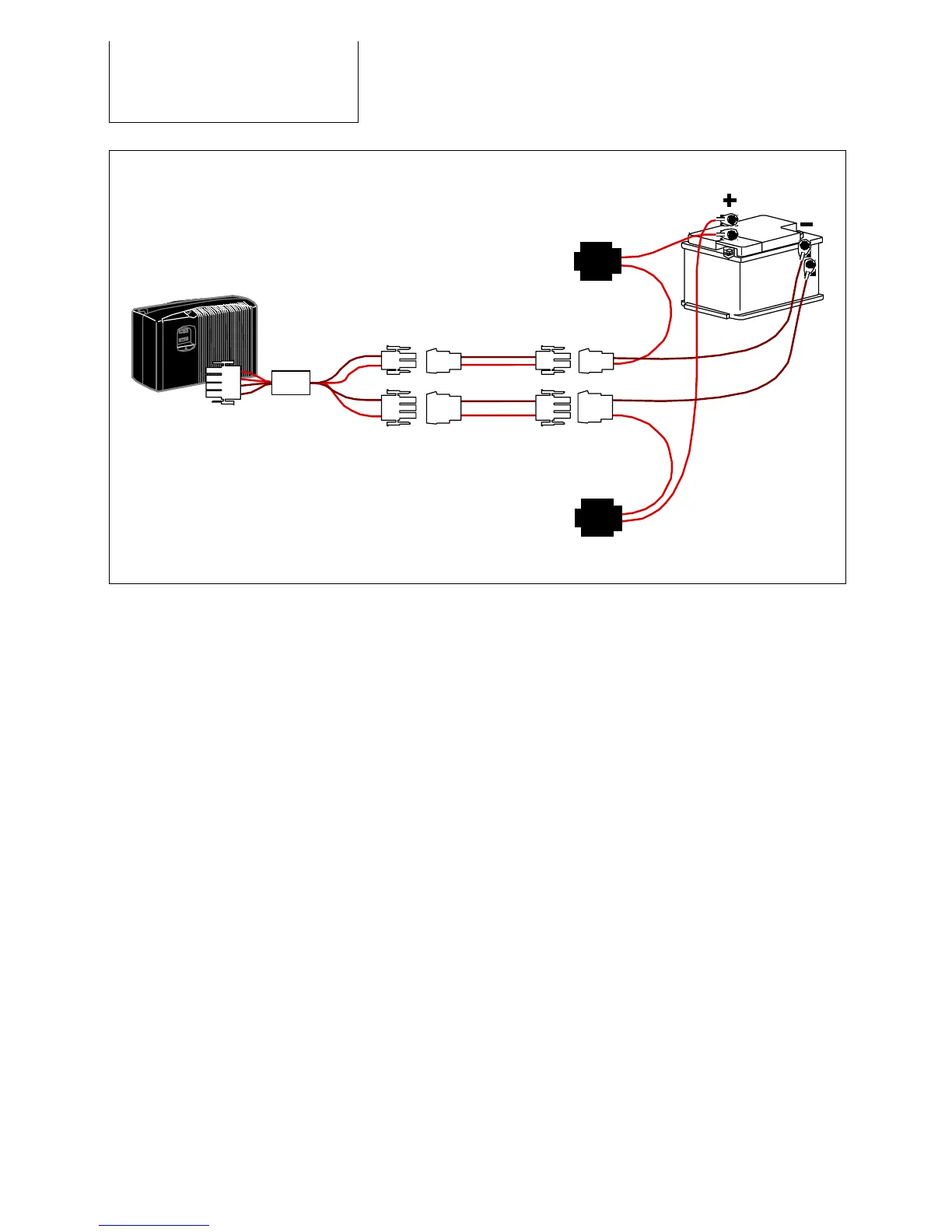

1. unit
2. connecting line to fuel cell
3. extension sense line (optional)
4. battery fuse sense 2 A
5. battery
6. extension power line with 3-pole plug (optional)
7. battery fuse power 7.5 A
red
brown
Fuse 7.5A
2
3
4 5
6
7
1
Fuse 2A
