EFT G06 - Arm Installation

EFT agriculture drone frame installation instruction
© 2019 EFT All right reserved
第
6
页 共
11
页
Arms installation
Note： The installation of the arm requires the removal of some parts of the
fuselage. Please pay attention to the installation position of the removed parts
to facilitate the recovery later.
Note: When installing the arm, pay attention to the folding direction, and place
the reserved hole of the water pipe downward.

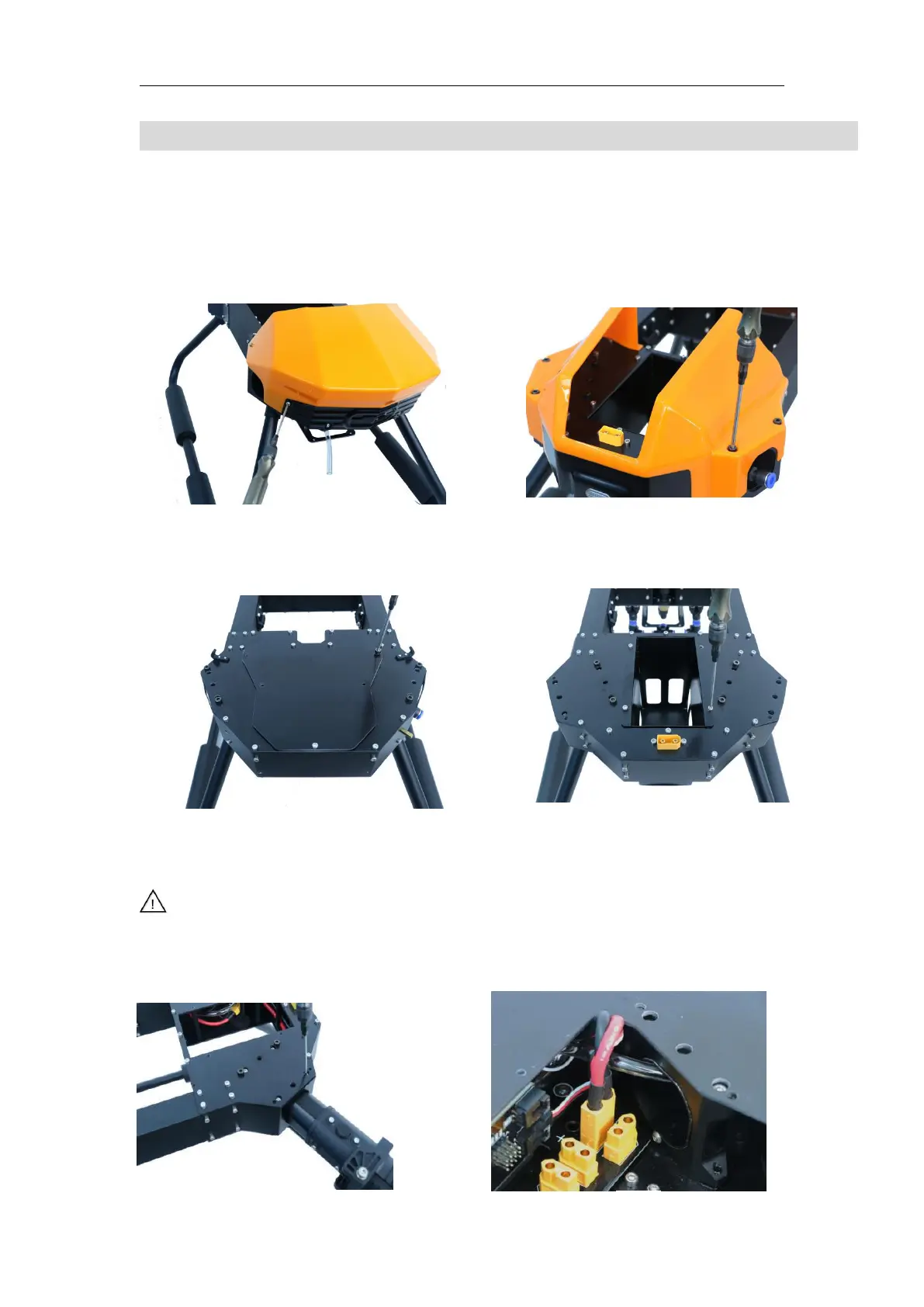

3、Remove the upper carbon plate
图 2
图 1
图 1
1、Remove the front cover
2、Remove the back cover
1、The arm passes through the arm tube clamp, and then locks after reaching the limit screw.
4、Remove the battery box
图 4
图 3
图 2
