EFT agriculture drone frame installation instruction
© 2019 EFT All right reserved
Motor installation
This manual uses the Haoying X6 motor. It is recommended to install the propeller after
the aircraft performance is adjusted.

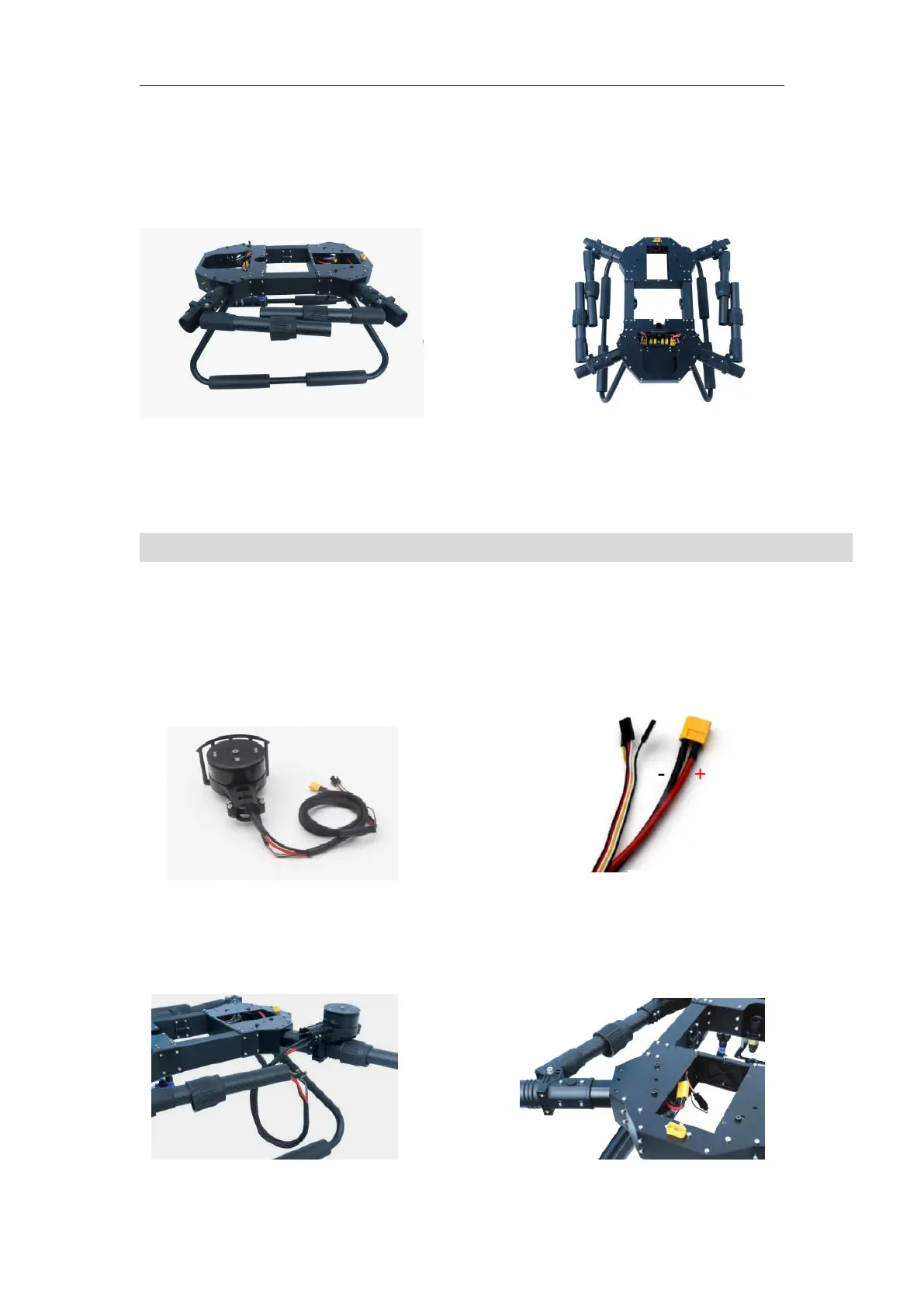

2 、Install the arm on the frame in the folding
direction as shown below,
Use the M3*10 screws that come with the body
to fix it.
3、Install the four arms on the frame.
1. Put the motor harness into the snakeskin mesh tube, weld the XT60 male , pay attention
to distinguish the positive and negative poles. (It is recommended to use a 10mm
heat-shrinkable tube to tighten the ends of the snakeskin network tube to avoid
bifurcation of the snakeskin network tube.)
2. Install the power in sequence with reference to the direction of the machine head, pass the motor
through the arm as shown in Figure 3, and insert it into the reserved power supply cord. Pay attention
to distinguish the CW/CCW motor. (Note: The battery compartment is in the direction of the tail)
To Next Page
