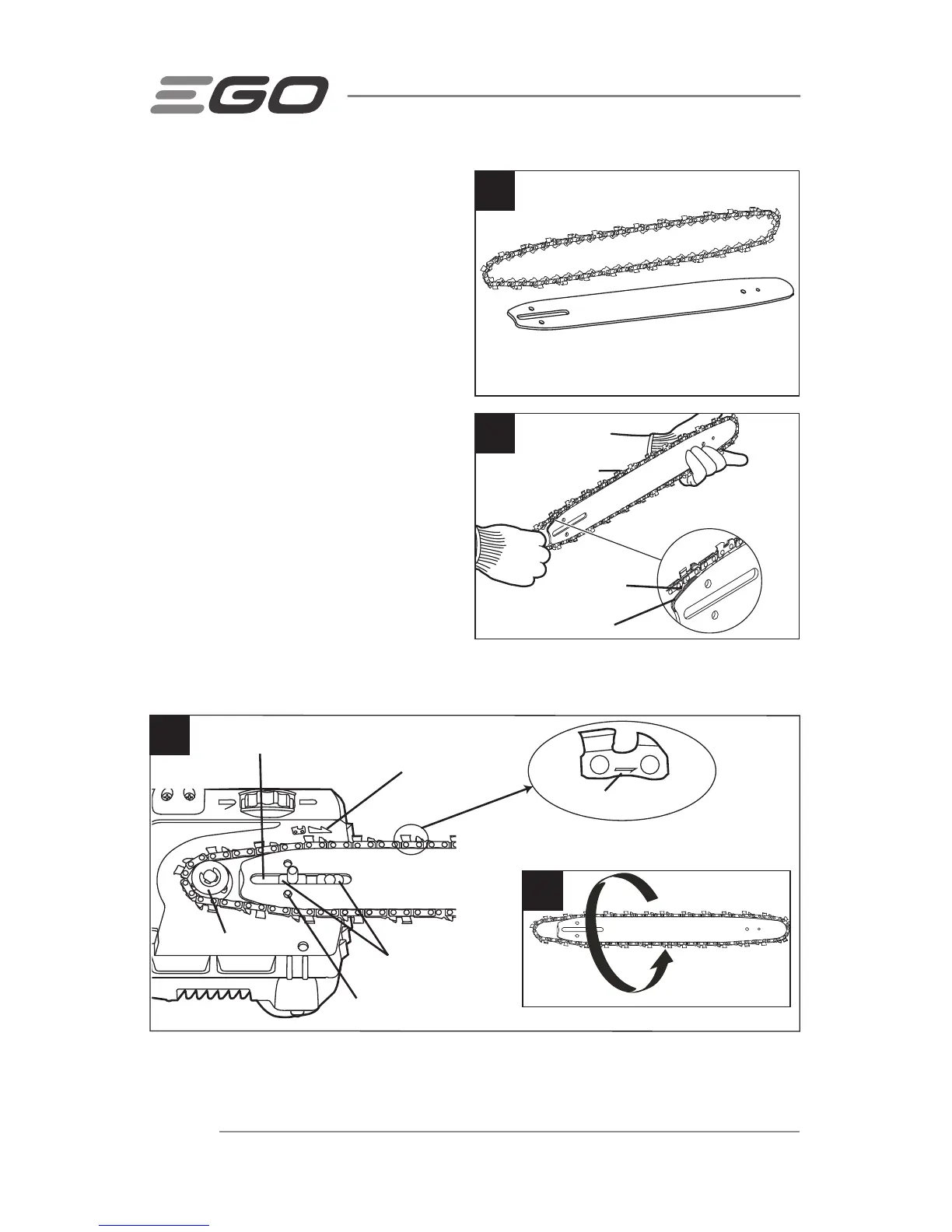

4. Turn the chain tensioning knob
towards the front handle as far as it
will go. Lay the new saw chain in a
loop on a at surface and straighten
any kinks (Fig. 9).
5. Place the chain drive links into the
guide bar groove. Position the chain
so there is a loop at the back of the
guide bar (Fig. 10).
6. Hold the chain in position on the
guide bar and place the loop around
the sprocket of the power head.
NOTICE: Small directional arrows are
engraved in the saw chain (Fig. 11a).
Another directional arrow is molded into
the housing (Fig. 11a). When looping the
saw chain onto the sprocket, make sure
that the direction of the arrows on the
saw chain will correspond to the direction
of the arrow on the housing. If they face in opposite directions, turn over the saw chain
and guide bar assembly (Fig. 11b.)
11a
11b
Sprocket
Tension Adjusting Pin
Guide Bar Slot
Rotation
Direction Arrow
Alignment Flange
Cutter Direction
9
10
Guide Bar Groove
Chain Drive
Links
