EGO CS1600E - Page 13

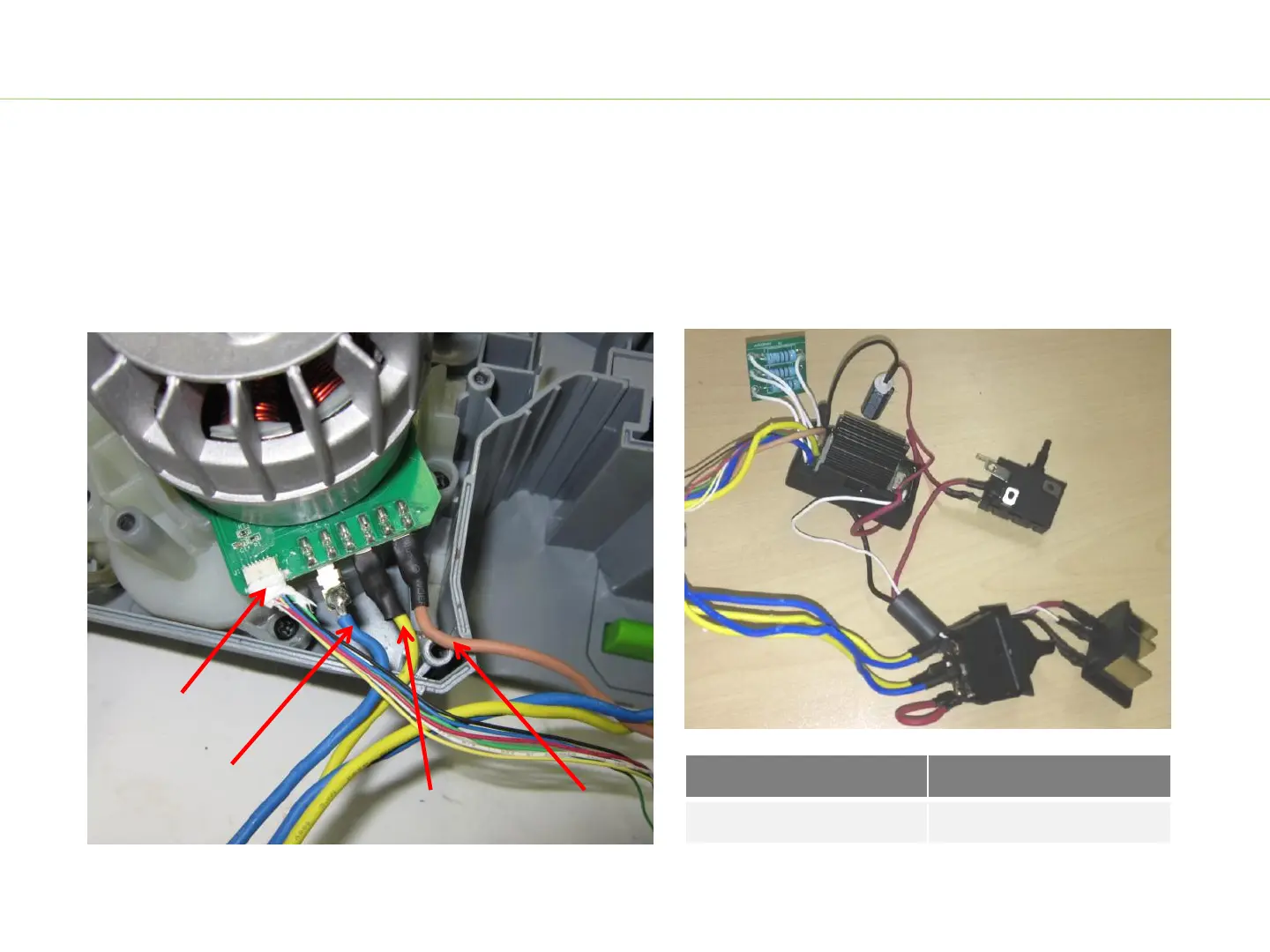

5. Remove the heat‐shrinkable sleeves from the Motor PCBA connection terminals.
6. Disconnect the three cable connections with a soldering iron.
7. Remove the glue on the plug surface and disconnect the plug from Motor PCBA.
8. Remove PCBA from Motor, replace it if it is broken.
Replace PCBA
13
Blue
Yellow Brown
Plug
Description
Part Number
Electric Assembly
2830039003
