EGO CS1600E - Replace the Motor

1. Remove the E-ring, Gasket and Sprocket from the motor shaft, see Page 7.
2. Disconnect PCBA from motor, see Page 10-13.

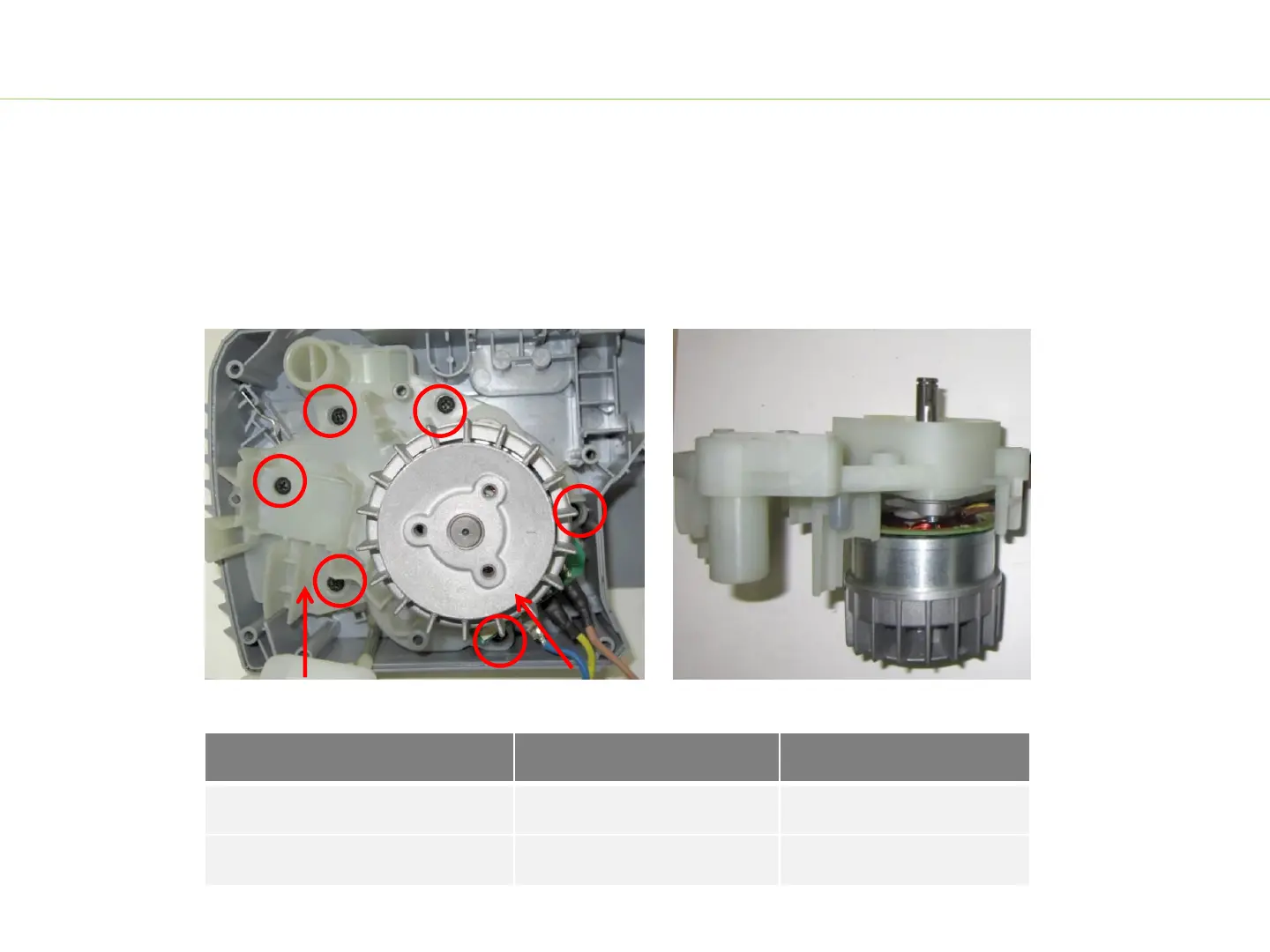

3. Loosen the 6 screws in motor support and remove the motor assembly together with motor
support from the right housing.
Replace the Motor
14
Description
Part Number
Qty.
Motor Support
3127503001
1
Tamping Screw
5610042014
6
Motor support
Motor
