EGO CS1600E - Page 21

7. Fix the brake switch in housing, lock the switch with the clamp.
8. Move the trigger to the left and mount the brake handle in position.
9. Move the brake handle to test the brake function (mechanical function)
21
Description
Part Number
Quantity
Clamp
3700367001
1
Tapping screw
5610042014
1

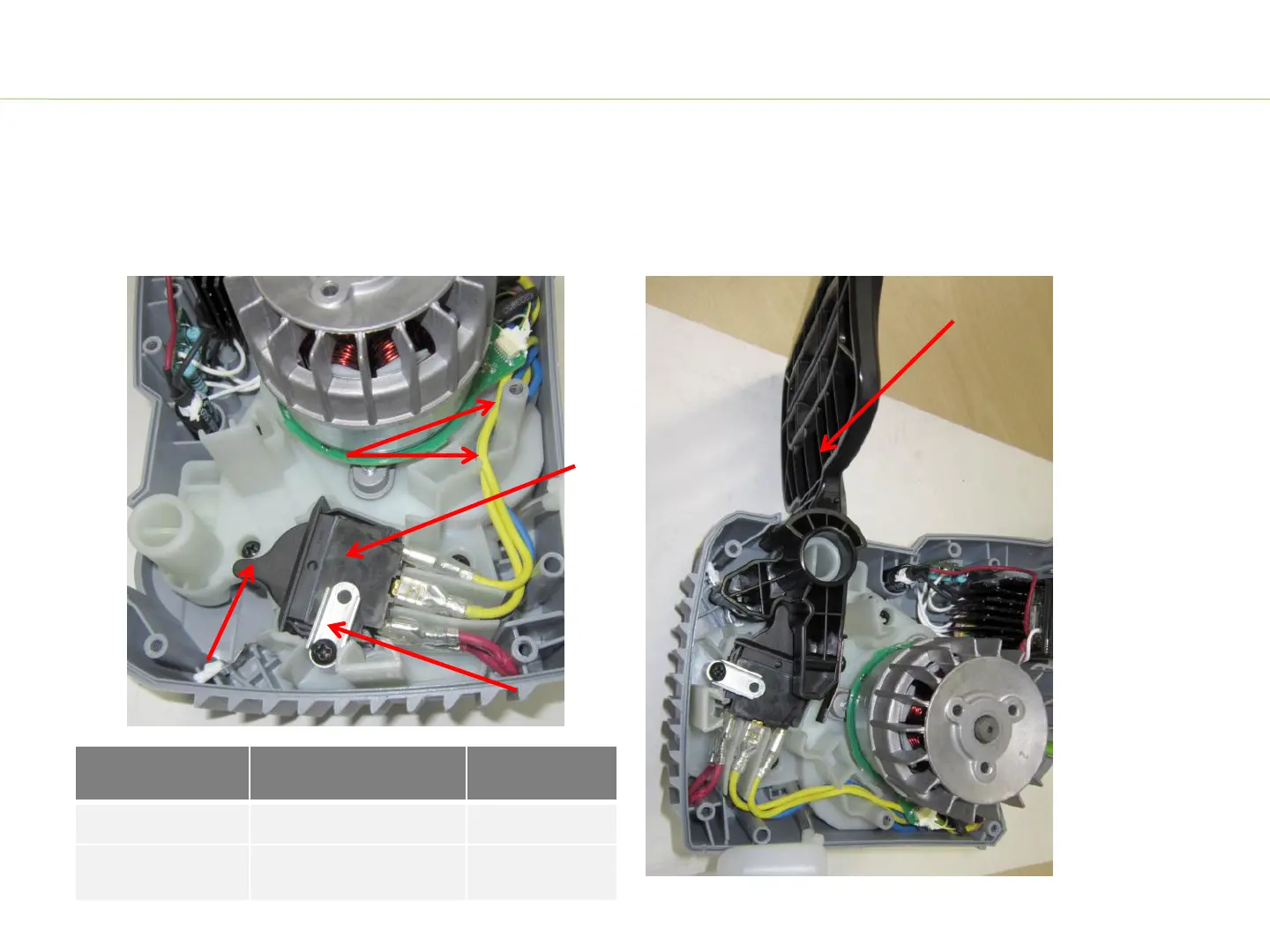

Assemble the Product
Brake Handle
Move the trigger to
the left
Align the
cables in
groove
Clamp
Brake
Switch
