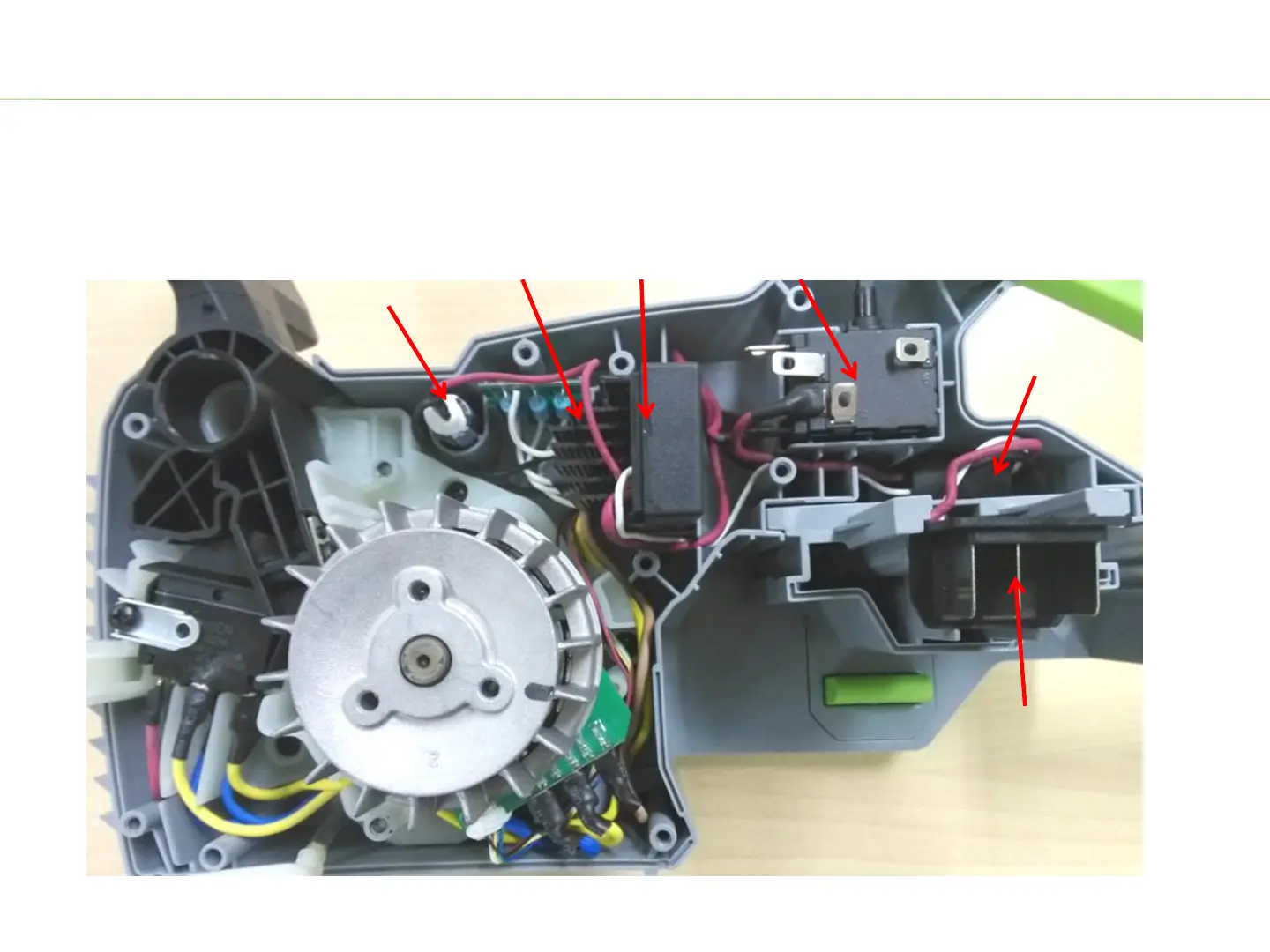

10. Align the cables in the grooves and fix the PCBA, capacitor, main switch, battery connection
terminals in the housing.
22
Assemble the Product
PCBA PCBA
Electrolytic
Capacitor
Main Switch
Battery Connection
Terminal (base)
Magnet Ring
