EGO CS1600E - Page 30

30

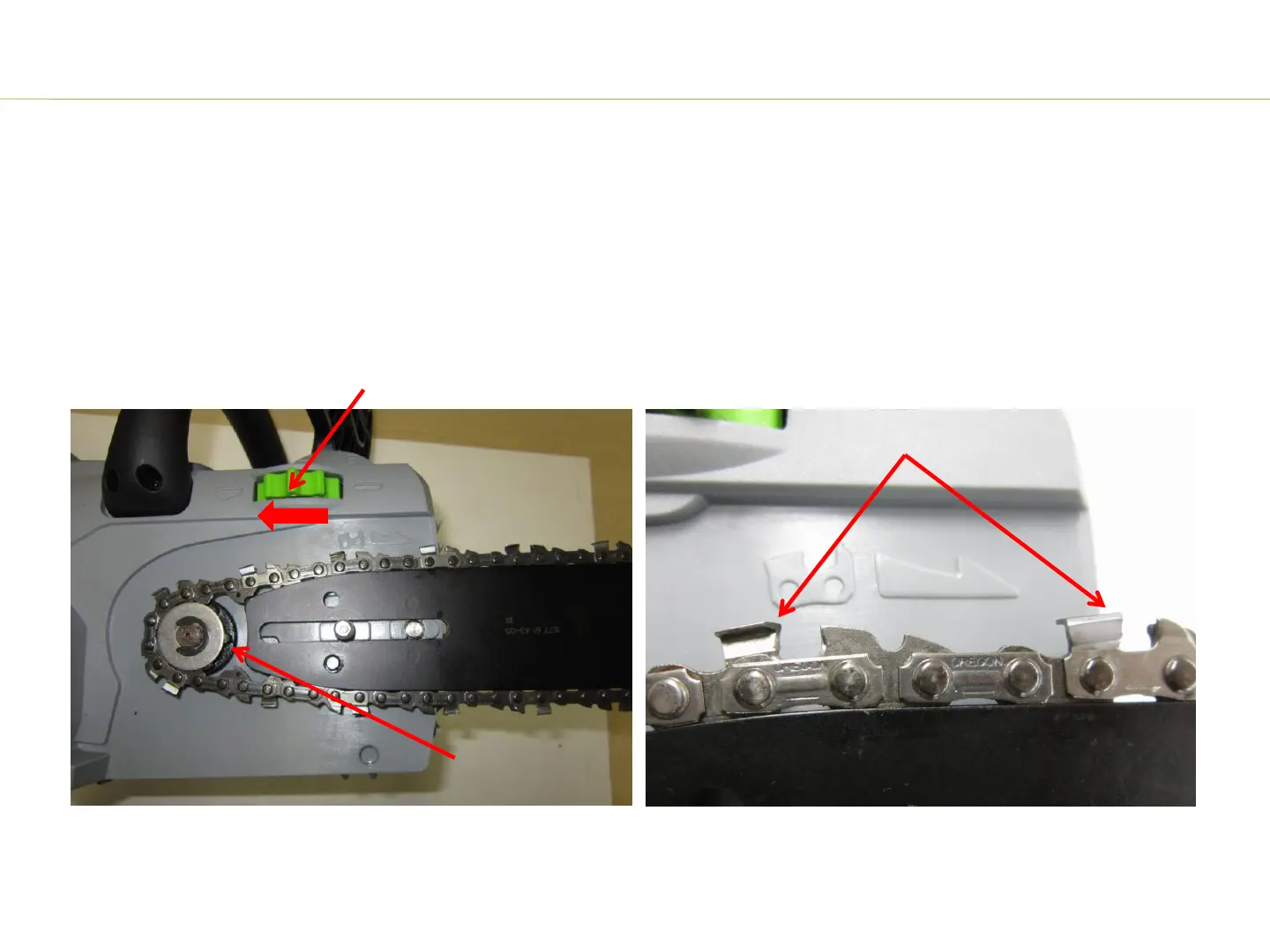

21. Assemble the guide bar and saw chain:
(1) Turn the chain tensioning knob towards the front handle as far as it will go.
(2) Place the chain drive links into the guide bar groove.
(3) Hold the chain in position on the guide bar and place the loop around the sprocket.
Direct the cutting edge
towards the rotating
direction
Assemble the Product
Sprocket
Chain Tensioning Knob
