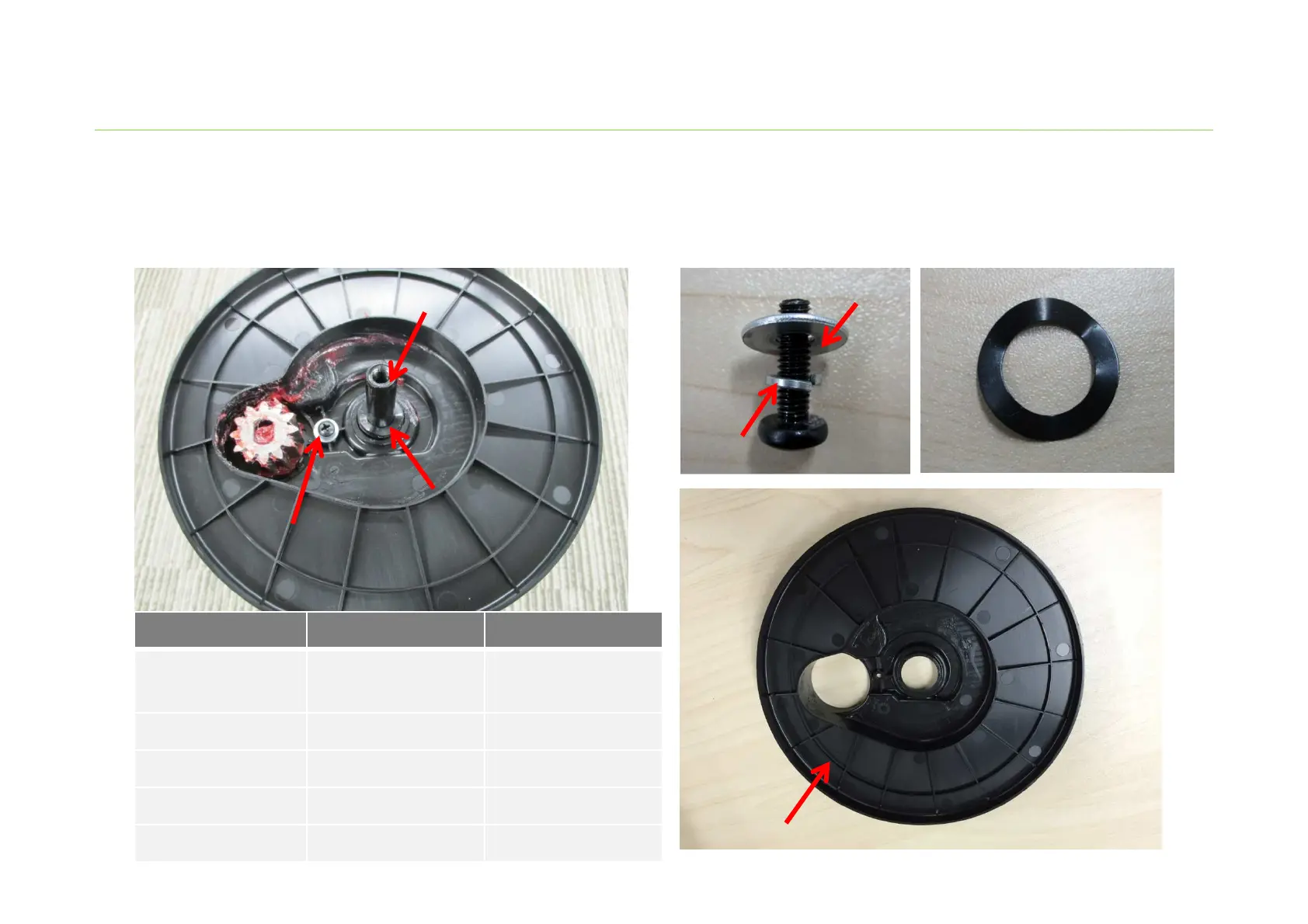

Screw with washers
Wave washer
Shaft
5. If the wheel protective cap is broken, replace it with a new one.
6. Loosen the screw and remove it with its spring washer and plain washer. Detach the wheel
protective cap from the shaft as well as the wave washer.
Description Part Number SPEC
Wheel
protective cap
3127923001 -
Screw 5620041006
M4×14
Plain washer 5650004001 -
Spring washer 5650007001 -
Wave washer 5650453001 -
Gasket
Wheel protective cap
Wave washer
Plain washer
Spring washer
1. Rear Wheel Replacement
7
LM2120E-SP Lawn Mower
