56-VOLT LITHIUM-ION ELECTRIC ZERO TURN MOWER — ZT5200L/ZT5200L-FC50

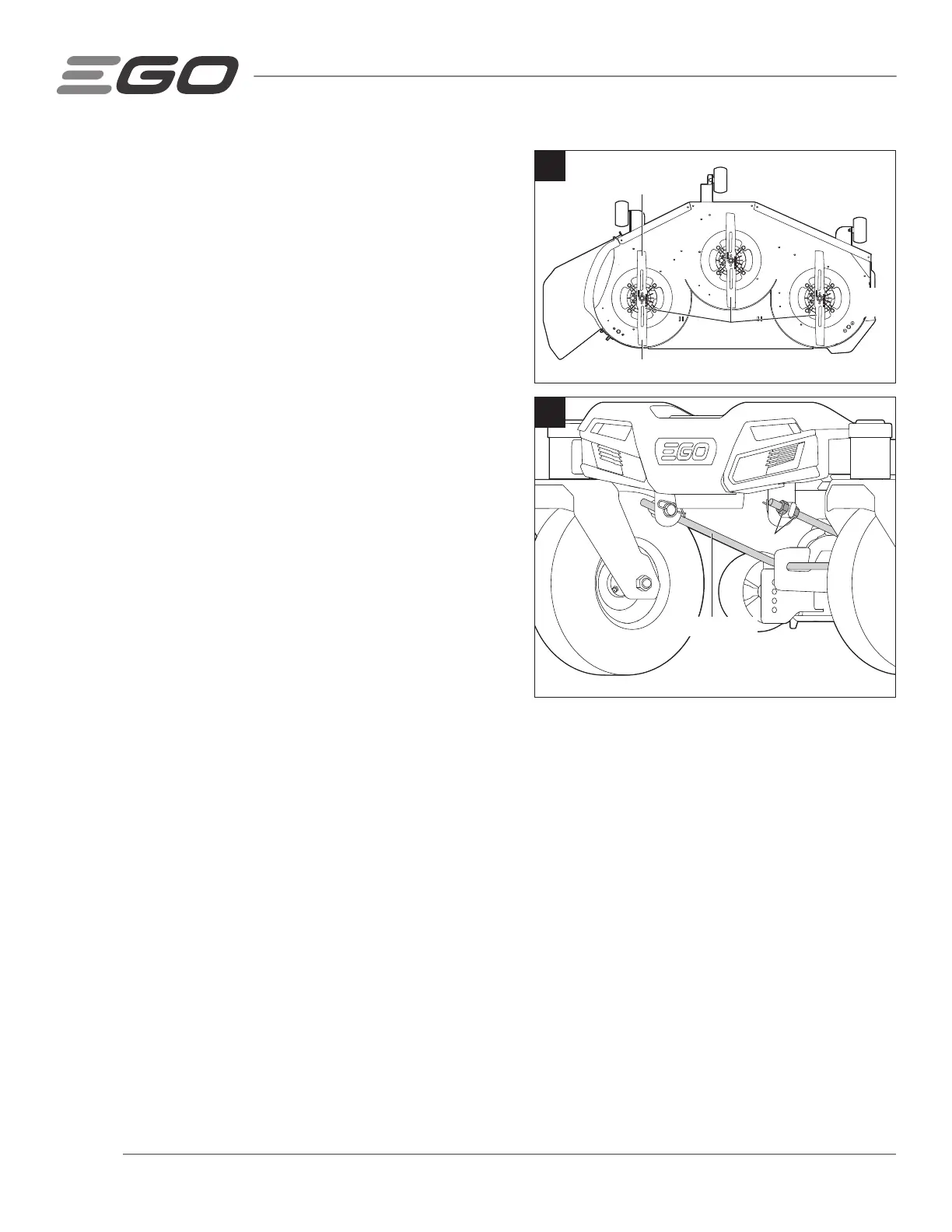

To Make Front-to-Rear Adjustment (Fig. 32)
NOTICE: Always level the deck side-to-side before making a
front-to-rear adjustment.
1. Carefully rotate all three blades so they are all facing front-to
-rear as shown in Fig. 32.
2. To facilitate the measurements, at the outside cutting edge of
the right blade, measure the distance from the tip of the blade
to the ground (Fig. 30). For best results, the front tip of the
blade should be from 3/64 in to 13/64 in (1mm to 5mm) lower
than the rear tip.
3. If front-to-rear adjustment is needed, use a 23/32 in (18mm)
open-end wrench (not supplied) to adjust the four nuts on the
suspension linkage (two for each side) (Fig. 33).
NOTICE: Make sure to turn the corresponding nuts on both sides
equally to avoid altering the side-to-side measurement.
4. Measure again to verify that the front tip is now 3/64 in to
13/64 in (1mm to 5mm) lower than the rear tip. If not, continue
to adjust and measure until they are.
5. Retighten the nuts. The recommended torque for the nuts is
38-42 ft–lb (52-57 N.m).
33
Nut
Suspension Linkage
32
Blades front to rear
Right
Blade
Left
Blade
Outside cutting edge
Outside cutting edge
