5. Installation; General

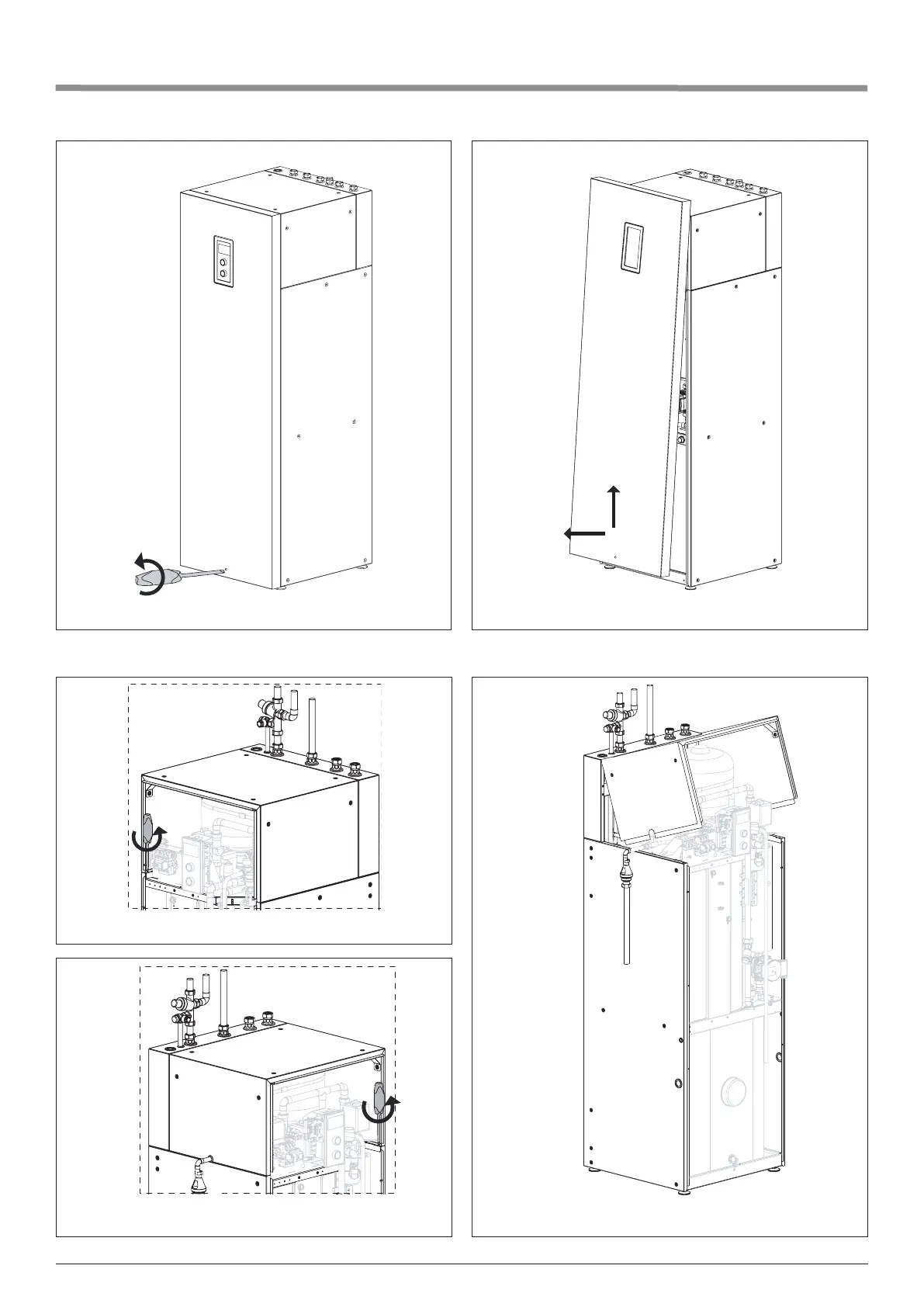

The following steps will assist in removing the casing for installation & maintenance purposes.
Loosen Bottom Screw.
Lift & Pull Cover Out At The Bottom To Remove.
3
4
Remove Left Screw.
Remove Right Screw.
5
Carefully Lift & Remove Top Section.
1
2
