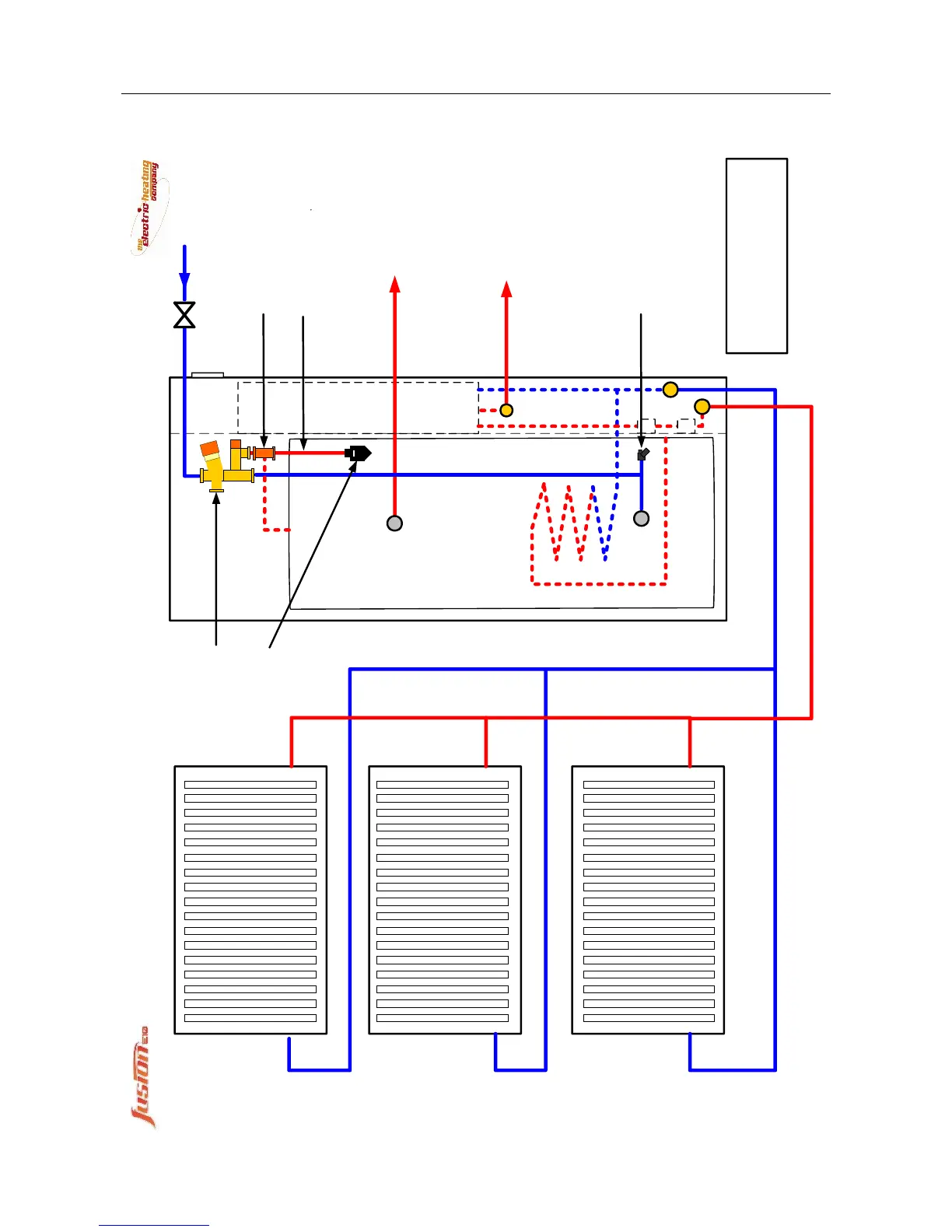

10. Installation: External pipework schematic
Fusion
Electric
Boiler
Cylinder
Domestic Hot Water
Fusion Combination Unit
(side View)
Central Heating
Pressure Relief
Outlet
Central Heating Flow
Central Heating Return
Cold Feed
Hot Water
Temp Pressure Relief
Outlet
Pressure
Reducing set
Tundish
Mains Water Connection
This must not be fixed pipe work
The use of a filling loop will be
required and disconnected after use
Drain Off for Cyl
Min 300mm
Drain Valve to be fitted at lowest point.
Isolator
