EHC Fusion E10 Combi – Installation and technical manual Page 9
7. Installation: siting
Choosing a location
The Fusion E10 Combi must be installed indoors in a dry and frost free environment. It must
be vertically mounted on a flat, level surface capable of supporting the full weight of the unit.
When full the unit weighs a total of 250kg - 290kg.
Consideration must be given to maintenance – clearance must be left around the
boiler to allow the front and top panels to be removed and to allow access to the
external pipework and controls.
Care must be taken when lifting this unit. A two man lift is recommended. Hand holds
are provided in the case at the top rear and bottom front of the unit.
Removing the panels
For installation, the front door and top panel cab be removed.

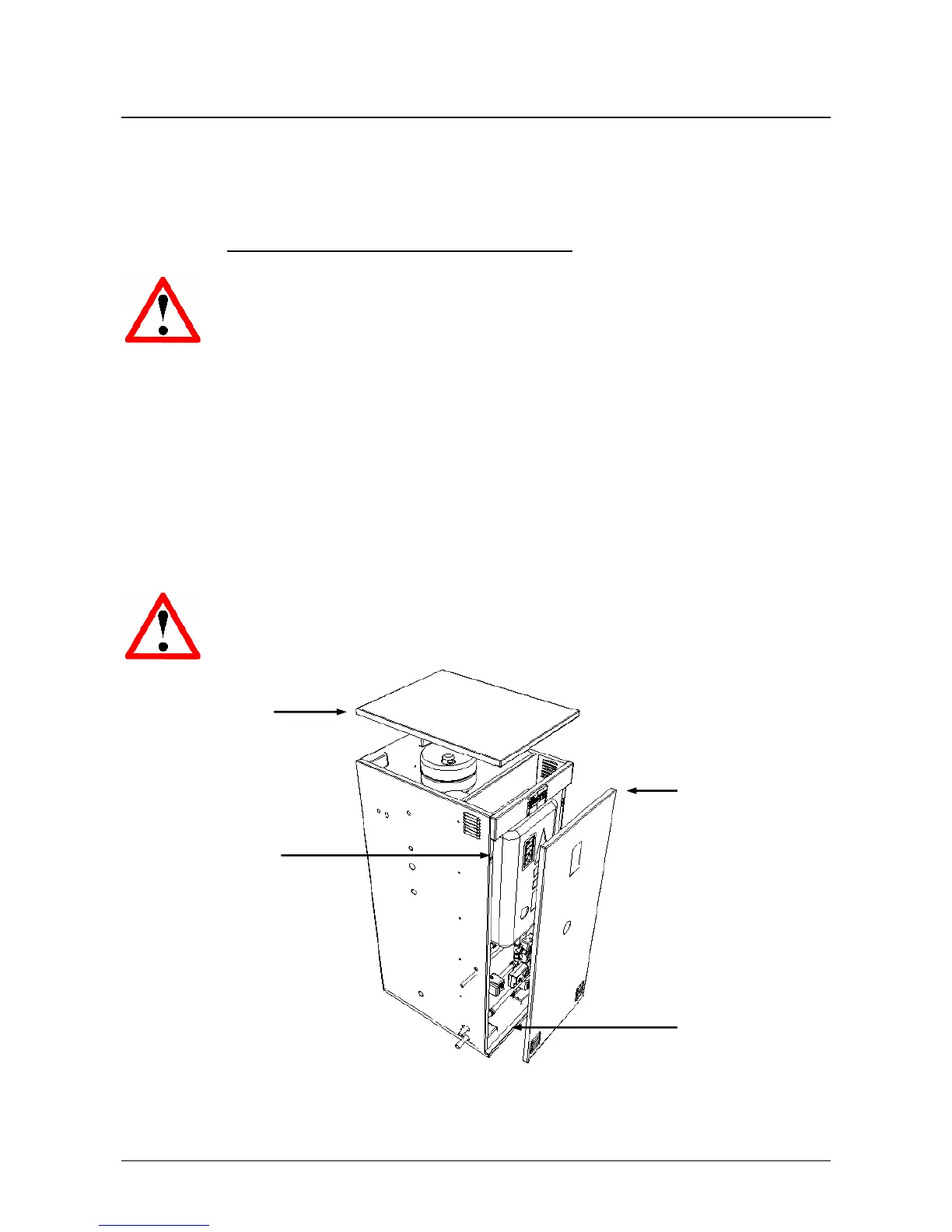

1. Door B is secured by two spring clips at point C. There are two locating studs for door at
point D.
To remove apply light force at edge around point C. Once released angle back
approx 15 degrees. Then lift vertically to remove studs at point D from their location.
Be careful to store the door where it cannot be damaged.
2. Lid A has no securing areas and can be lifted directly off the unit.
All EARTH connections must be reconnected to removable side panels
A
B
C
D
