EHC Fusion E10 Combi – Installation and technical manual Page 6

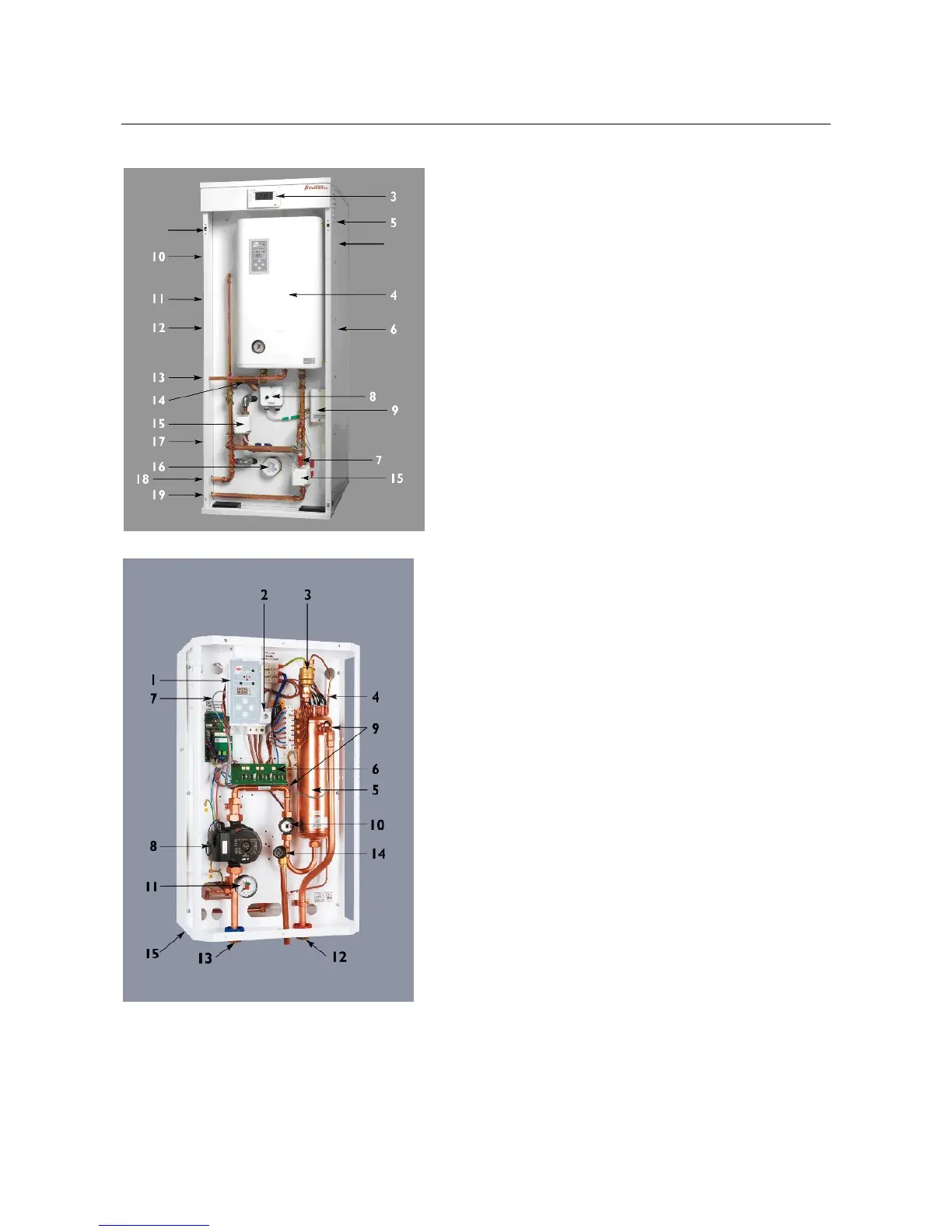

5. Key components
1
2
1 Enclosure
2 Removable door retaining clips
3 Twin channel programmer
4 Fusion Slimline Boiler
5 Rear compartment – expansion vessels
6 Rear compartment – cylinder
7 Automatic bypass
8 Cylinder stat
9 Wiring centre
10 Domestic hot water temp/pressure relief outlet
11 Programmer cable
12 Domestic hot water outlet
13 Central heating pressure relief outlet
14 Magnetic filter
15 Zone valves
16 Immersion Heater
17 Cold main
18 Central heating return
19 Central heating flow
1 Control Panel
2 Over-heat cutout
3 Automatic air vent
4 Heating elements
5 Copper heat exchanger
6 Printed circuit board
7 Voltage free control connections
8 Circulation pump
9 Flow and Return sensors
10 Flow switch
11 Pressure gauge
12 Heating flow
13 Heating return
14 Pressure relief valve
15 Enclosure
