Place the mounting plate exactly where you want to mount the
Alarm. With a pencil mark the location of the two screw holes. Taking
care to avoid any electrical wiring in the ceiling/wall, drill holes using
a 5.0mm drill bit through the centre of the marked locations. Push
the plastic screw anchors provided into the drilled holes.
Lift off the wiring cover using a flat head screwdriver as shown
in Figure 1.
The wiring must be connected to the terminal block on the
mounting plate as follows:
Country Live Neutral Interconnect Earth
Ireland Brown Blue White
Green/
Yellow
UK Brown Blue Black
Green/
Yellow
WARNING: Wiring must be installed in compliance with local
regulations.
WARNING: Mixing the Live and Neutral connections when
interconnecting Alarms may damage all the Alarms - ensure that
the same colours are used throughout the premises for Live,
Neutral and Interconnect wires.
We strongly recommend that you check for the following before
connecting the Alarm:
• check for Live and Neutral using a two probe tester.
• check for Live using a neon tester.
• check that the Interconnect wire is NOT connected to
Live, Neutral or Earth. Do not use an Earth wire for the
Interconnect line.
N.B. The Alarm does not need to be earthed. However the
terminal marked is provided for the convenience of the
installer so that any copper Earth wire or cable coloured green
and yellow, can be safely terminated.

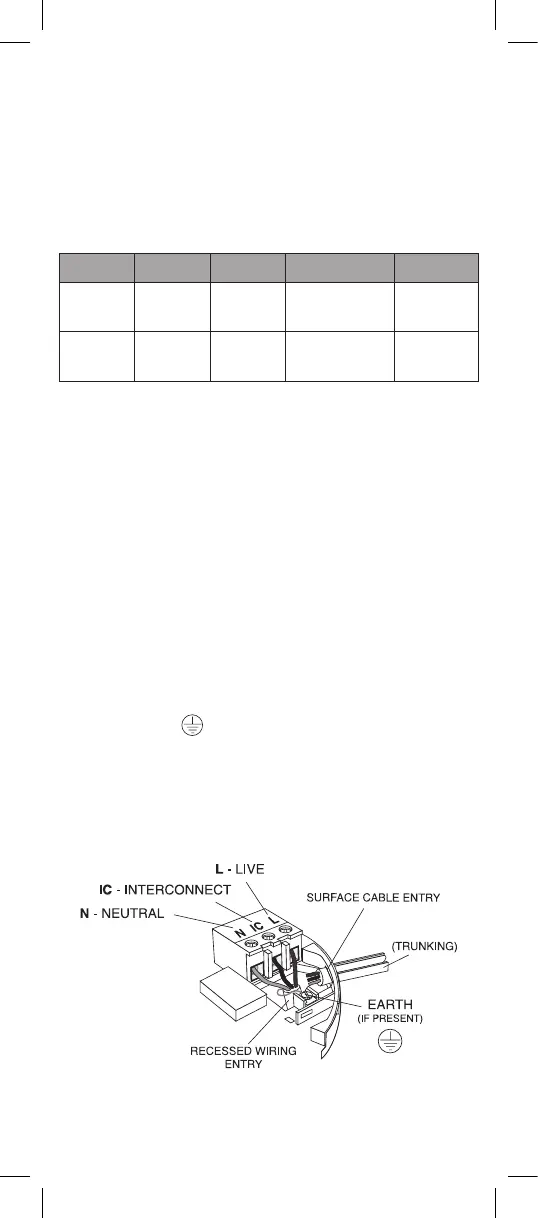

4. If the mains wires are recessed, bring the wires through the
rear hole in the mounting plate as shown in Figure 2.
REMOVEABLE
TRUNKING DOOR FOR
Figure 2
To Next Page
