MeeNote EVK operation SOP
1 Introduction
The MeeNote evaluation kit supports to drive Kaleido plus color ePaper displays with
touch and front light functions. This article will provide detailed information on how
to use the MeeNote evaluation kit to drive a Kaleido plus color ePaper panel.
The MeeNote evaluation kit can support
MeeNote
driving board
Kaleido plus color
ePaper displays module
Accessories
Driving board
(EPD 25V, TP 3.3V)
6" ePaper Display
(SC1452-FOA)
Adaptor board for 6" touch×1
Adaptor board for 6" front light×1
Adaptor board for 6" EPD (45pin to 34pin)×1
8 pin FFC×1
12 pin FFC×1
45 pin FFC×1
7.8" ePaper Display
(SC1452-GHA)
Adaptor board for 7.8" touch×1
Adaptor board for 7.8" front light×1
8 pin FFC×1
12 pin FFC×1
Before starting any operations, please make sure that the following components are
ready.
(1) MeeNote evaluation kit with 6" EPD module (SC1452-FOA )

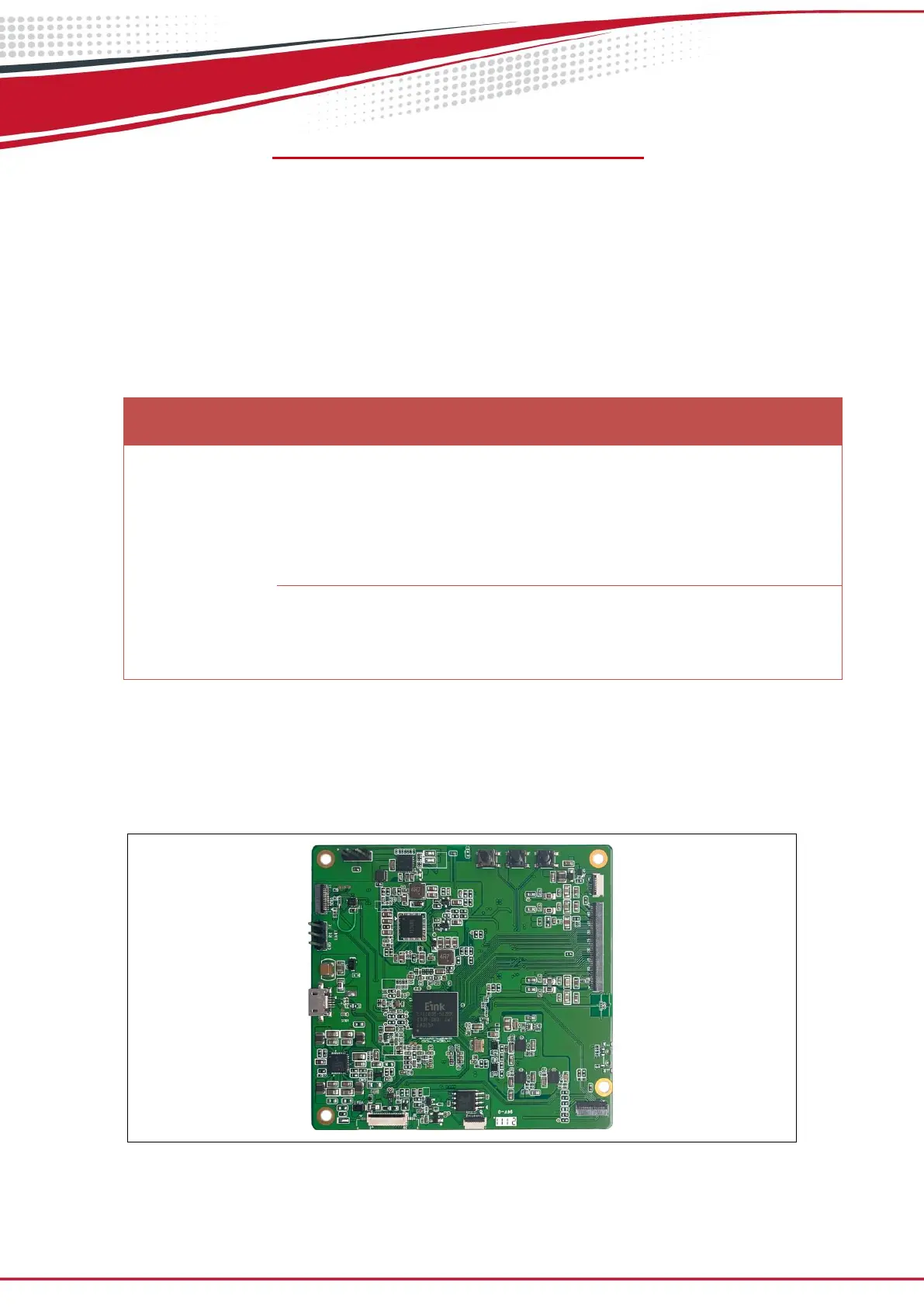

Main Board
MeeNote driving board (EPD 25V, TP 3.3V)×1
