Eizo FlexScan F930 - Pin Assignment; D-Sub Mini 15 Pin Connector; BNC Connector

32
6 SPECIFICATIONS

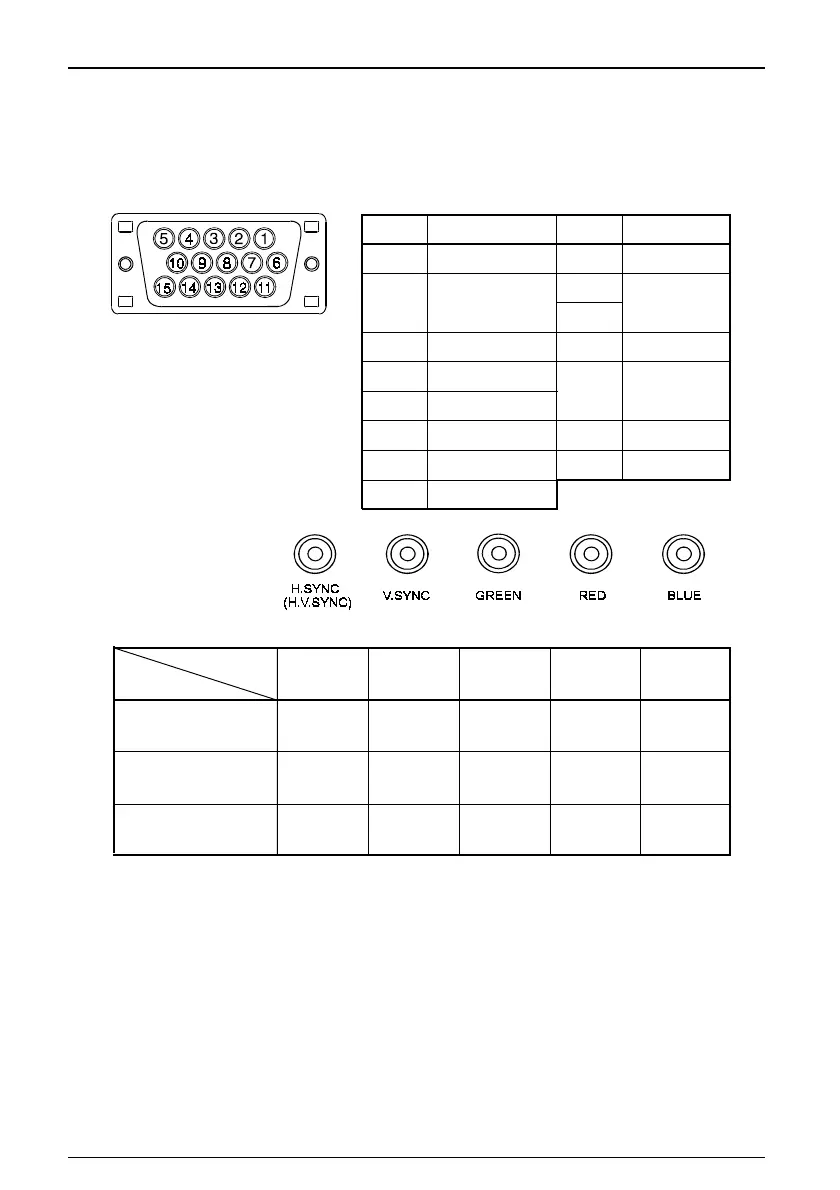

Pin Assignment
D-Sub mini 15 pin connector
Pin No. Signal Pin No. Signal
1 Red video 9 No pin
2 Green video/ 10 Ground
Green video 11 shorted
3 Blue video 12 Data
4 Ground 13 H. Sync
5 No pin
6 Red ground 14 V. Sync
7 Green ground 15 Clock
8 Blue ground
BNC connector
Input signal
Connector
Sync on green
Composite sync
Separate sync
H.Sync
N/A
TTL H/V
composite
sync
TTL
H. Sync
V. Sync
N/A
N/A
TTL
V. Sync
Green
Green
Composite
sync
Green
Green
Red
Red
Red
Red
Blue
Blue
Blue
Blue
Green video/
Green video
Composite Sync
Ground
shorted
H. Sync/H.V.
Conposite
Sync
