SMS Gateway User Manual
Shenzhen Ejoin Technology Co.,Ltd. 8

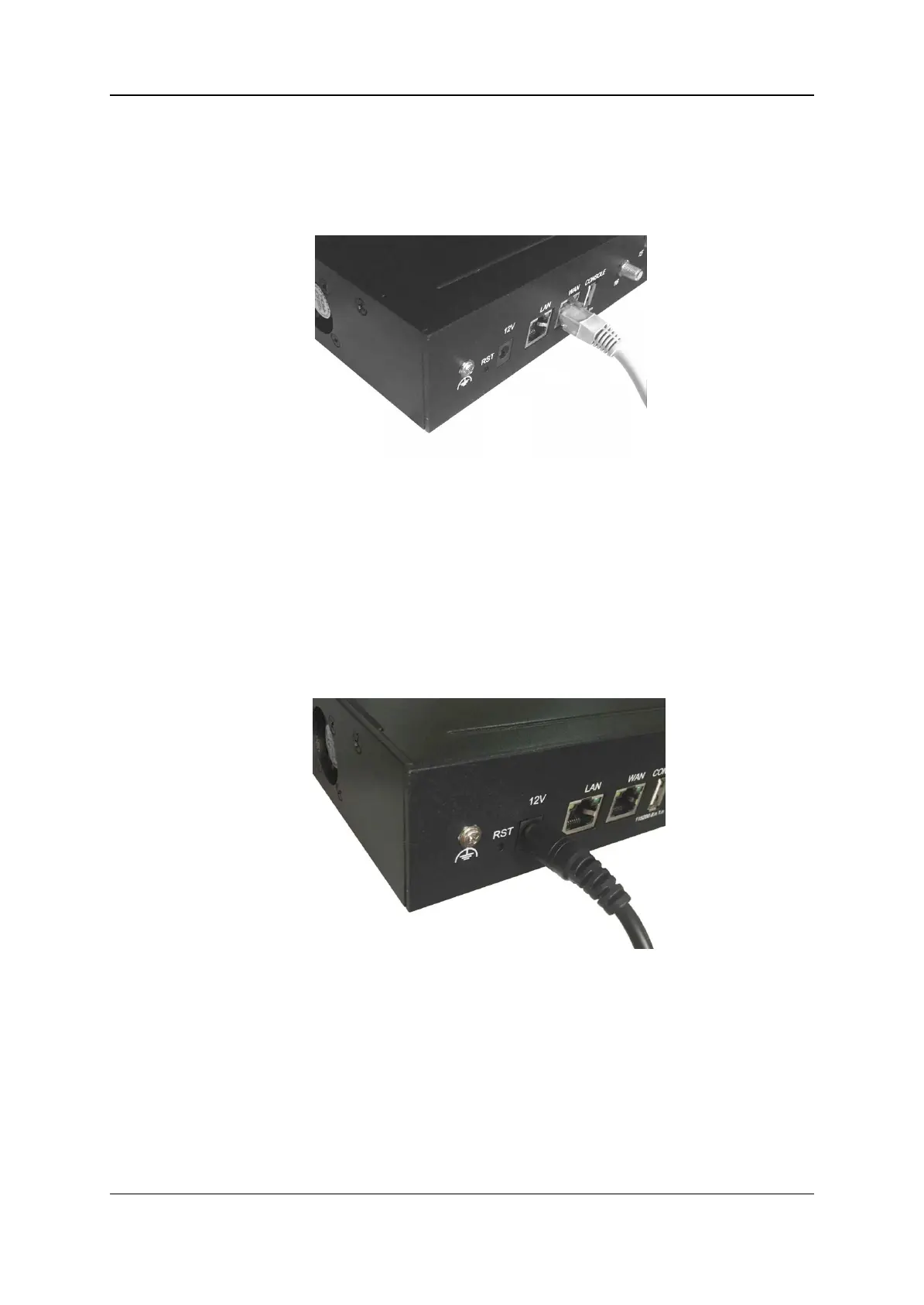

2.3 Network Connection
Plug Ethernet line into gateway WAN port, and then connect the other end of the
Ethernet line with switch or router. Note: Do not use LAN port, LAN port is useless.
Figure 2.3-1 Network Connection
2.4 Power Connection
Connect the small end of the power cable to the power input on the back panel, and plug
the other end of the cable into a 220V power outlet.
Figure 2.4-1 Power Connection
