SMS Gateway User Manual
Shenzhen Ejoin Technology Co.,Ltd. 5
1.3 Product Appearance

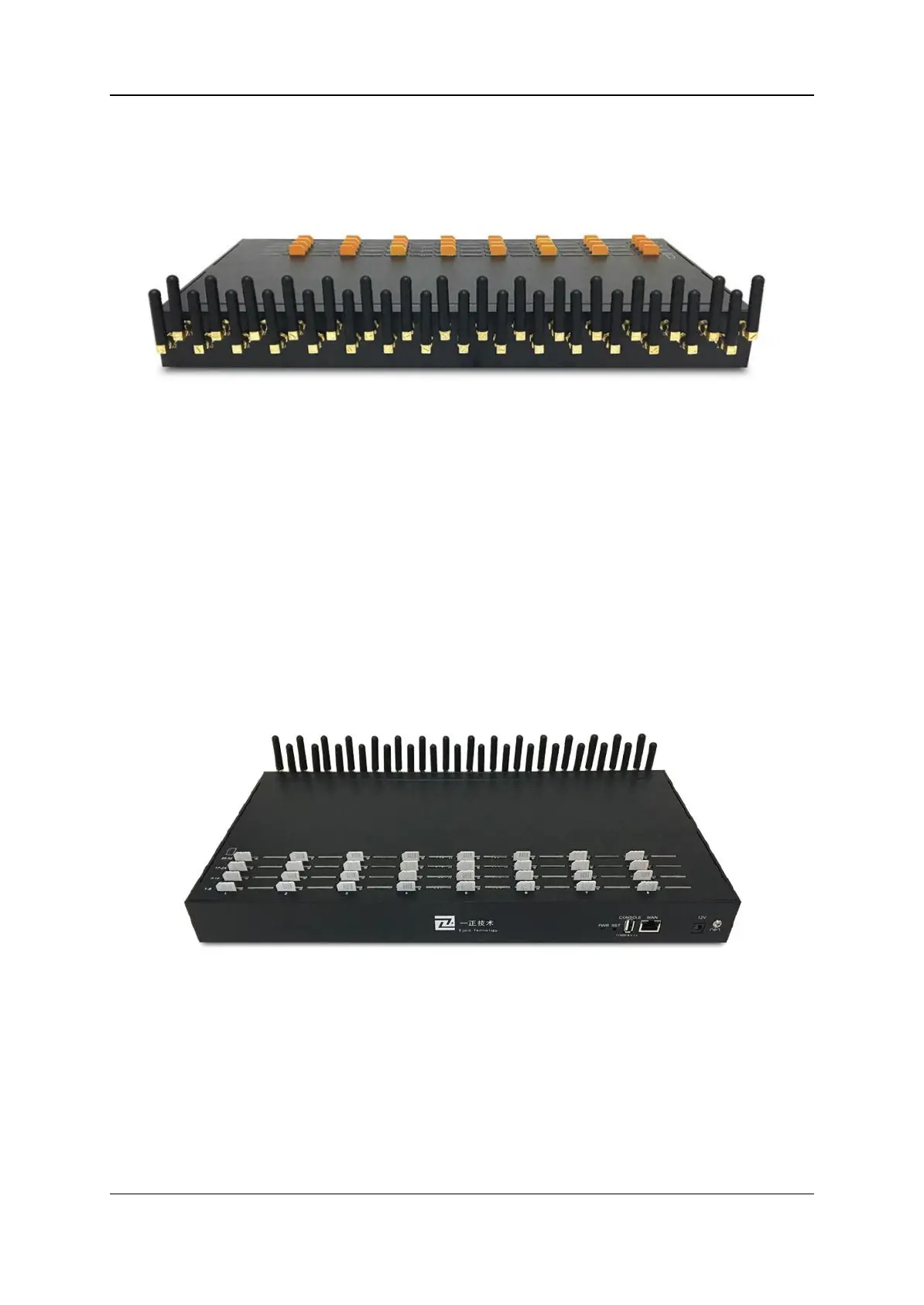

Back Panel
Figure 1.3-1 Back Panel
Description of the front panel(from left to right)：
1 Ground connection
1 reset button (press RST button about 10s will restore to factory settings)
1 Power Interface (DC 12V 5A)
2 Network Interface (LAN and WAN, RJ45)
1 Console Interface (USB to Serial, Baudrate 115200)
32 Antenna Connector
Front Panel
Figure 1.3-2 Front Panel
Description of the front panel(from left to right)
：
32 SIM slots (Multi Sim Rotation Model Sim Slot will be more than Port numbers)
1 Power light (indicate the status of the power connection)
32 LED lights (indicate the status of SIM cards)
2 fans
