TECNOEKA Srl ___________________________________________________________ operating and instruction manual
page 10 _____________________________________________________________________________________________

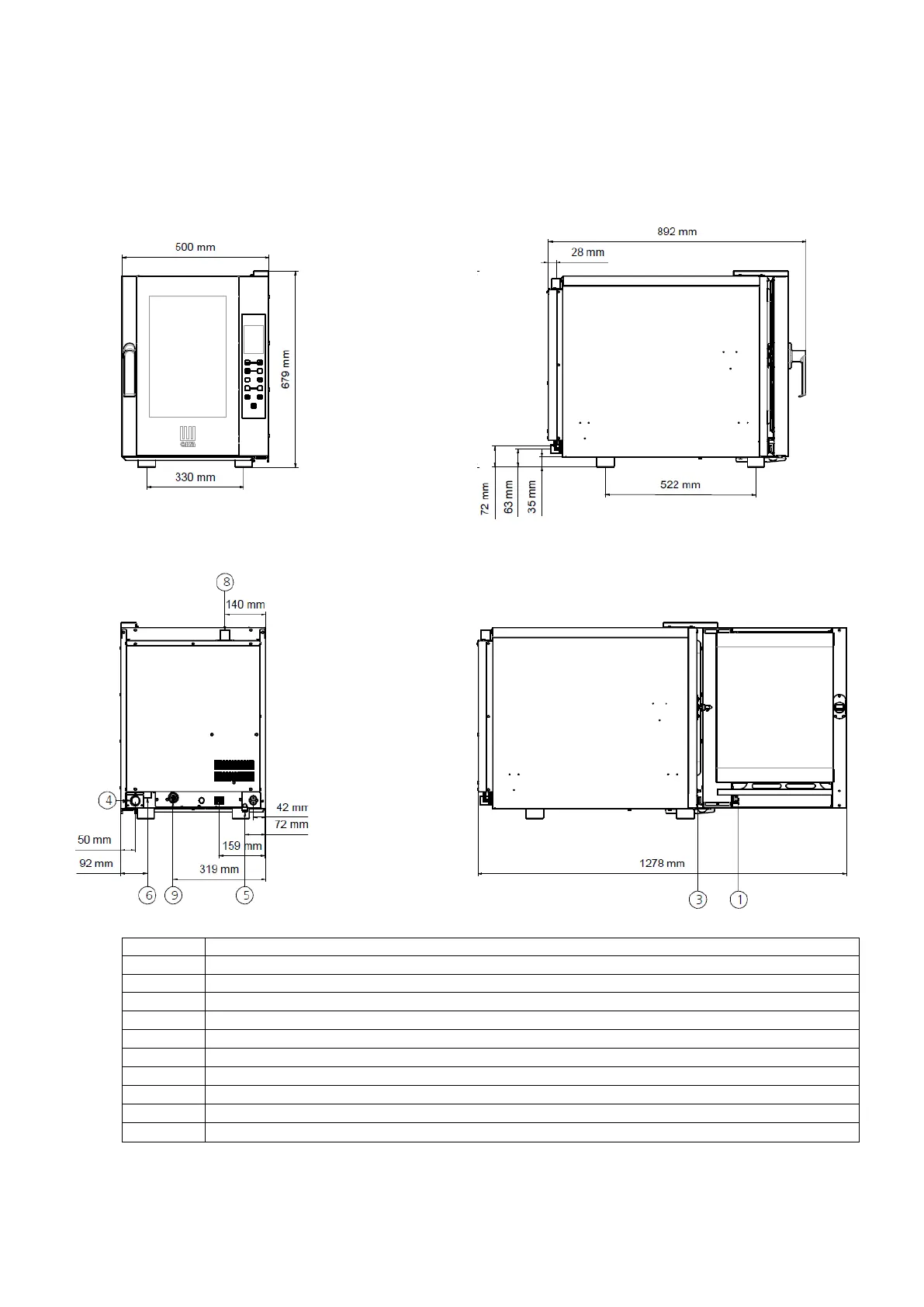

Installation and connection drawings
MODEL EKF 611 CTC
Fig. 1 (Dimensions are expressed in mm )
1
USB PORT
3
SOCKET FOR CORE PROBE CONNECTION
4
WATER DRAIN PIPE (DN30)
5
WASHING WATER INLET
6
SOFTENED WATER INLET (THREADED SOLENOID VALVE¾”)
8
STEAM VENT
9
POWER SUPPLY CABLE RETAINER
10
WARNING HOT SURFACE
11
DO NOT OBSTRUCT AERATION VENTS
12
WATER INLET MAX.200kPa
13
SOFTENED WATER INLET MAX. 200kPa
