eka EKF 711G UD - Gas Connection

Convection gas oven _ rev. 2__________________________ MODD. EKF 711G UD – EKF 664G UD – EKF 616G UD
_________________________________________________________________________________________ page. 11

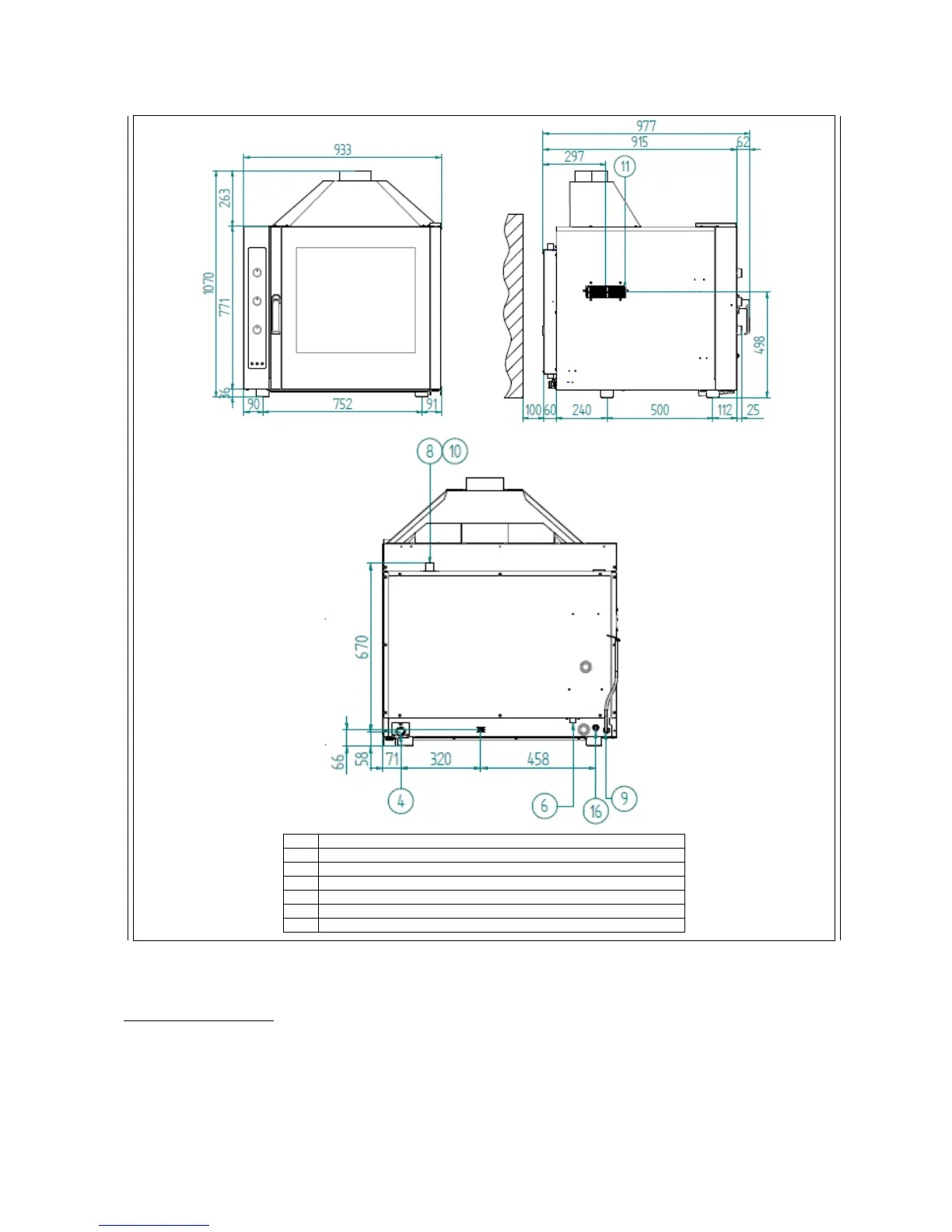

Installation / connection layout
4
WATER OULET TUBE (DN 30)
6
SOFTENED WATER INLET (THREADED ELECTROVALVE 3/4")
8
STEAM EXHAUST
9
CABLE GLAND FOR POWER SUPPLY
10
WARNING HOT SURFACE
11
DO NOT OBSTRUCT VENTS
16
GAS INLET (THREADED JOINT 1/2")
Fig. 3 (Dimensions in mm.)
2.7 Gas connection
Before installing, make sure that the oven is designed for use with the available gas. If it is not,
consult paragraph “Adaptation to other gas” or contact the manufacturer’s technical assistance
service.
Connection to the gas mains must be made according to the current national norm and
subsequent amendments.
The oven gas connection is R 1/2; this entry section must not be reduced.
