EKO INSTRUMENTS CO., LTD. - Pyranometer MS-80/80S/80U - Instruction Manual Ver. 1
Pg. 46
Check that the power supply of the main unit is “OFF”. Then, click "CONNECT" button.
Power on the MS-80S within 10 seconds once the "Connecting your sensor" message appears.
When the connection is completed, the window automatically switches to the "Dashboard" window. In the
upper-right corner of the display changes to "Pyranometer Connected".

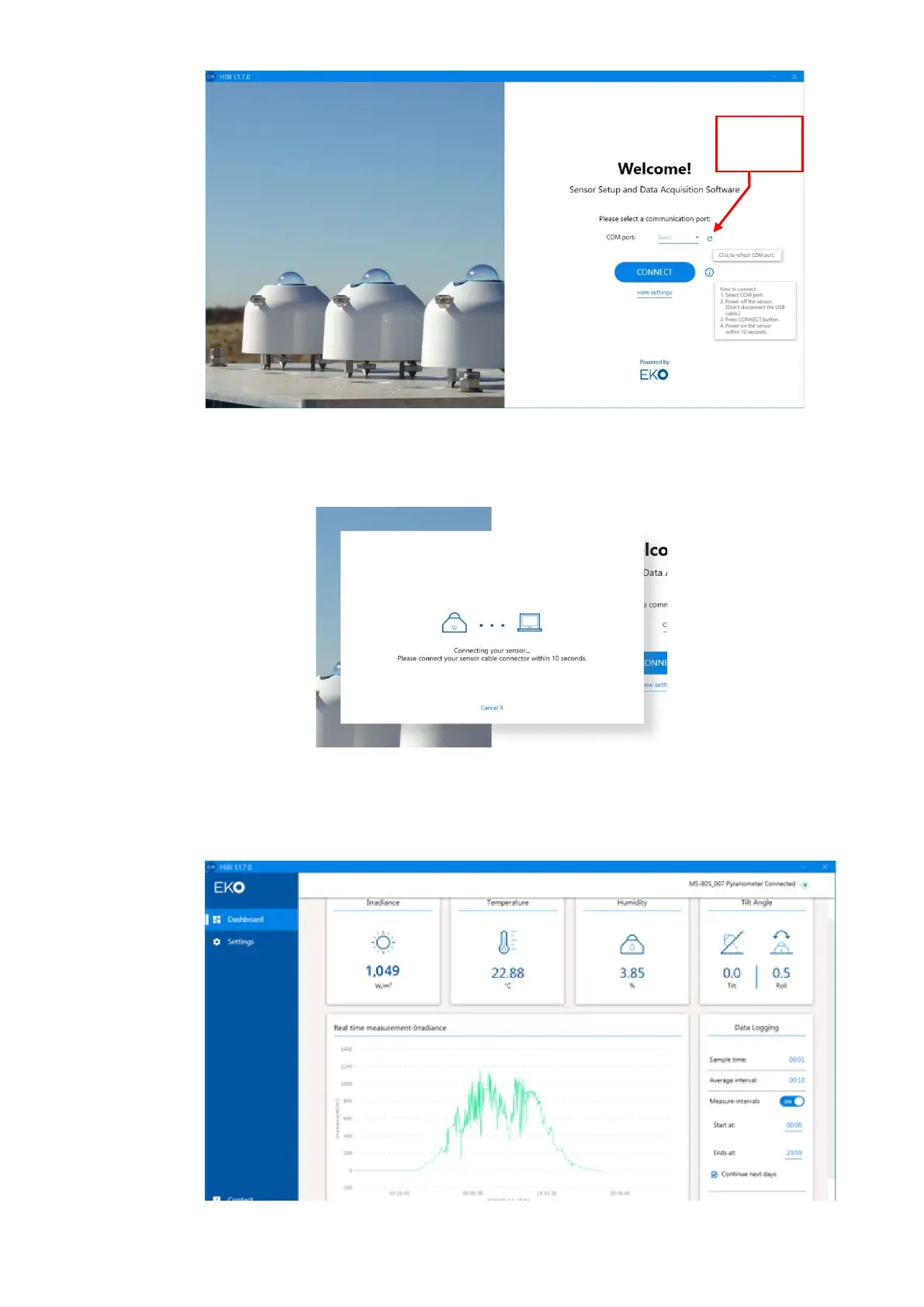

Figure A3-5. Com port select
Refresh
button
Figure A3-6. Connecting screen
Figure A3-7. Dashboard
