Connecting the Subwoofer Amplifier
• If you are connecting the subwoofer to an AV receiver or pre-Amp with a dedicated subwoofer or LFE
output, connect a RCA cable (not supplied) from the LFE/Subwoofer output on the AV Receiver/Pre-Amp

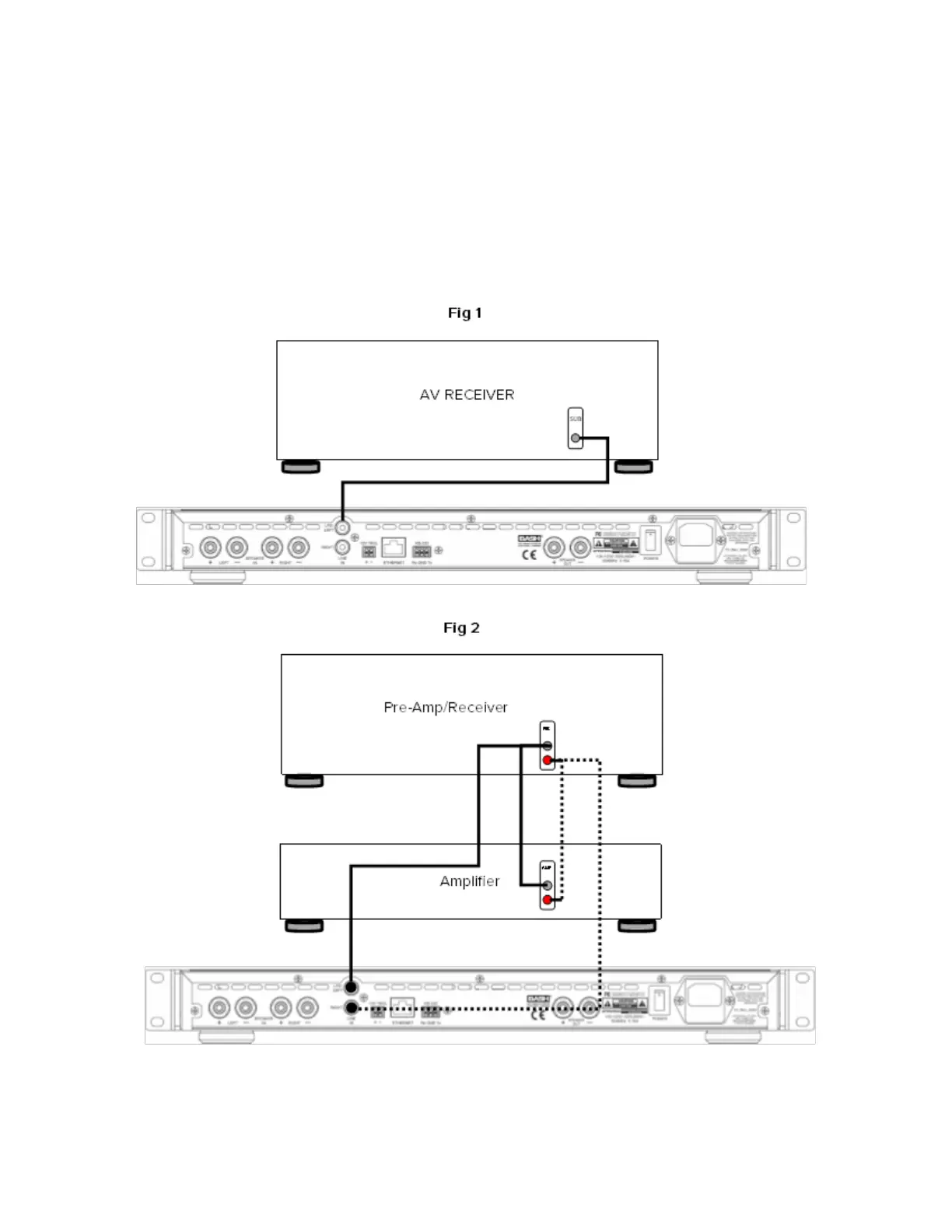

to the Right RCA input on the subwoofer (Fig 1).
• If you are connecting the subwoofer to a pre-amp or receiver without a dedicated LFE/Subwoofer output,
connect a set of stereo RCA connectors from pre-outs on the pre-amp to the left and right RCA inputs on
the subwoofer. If you are using a pre-amp with only one set of pre-outs, use a splitter for each output on
the pre-amp and connect two sets of stereo RCA cables to both the amplifier and to the subwoofer (Fig
2).
• Connecting the subwoofer amplifier to your home network allows the phone based setup application to
communicate over wi-fi even when the subwoofer amplifier is in another room in your home. It will also
allow for 3rd party controllers to communicate with the amplifier.
